ILS - Mastech Ms8268 Digital Multimeter Auto Range For AC DC Ammeter Voltmeter Ohm Electric Tester
- メーカー
- ILS
- JAN
- 0659682125350
- メーカー品番
- 1204409
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
Description:

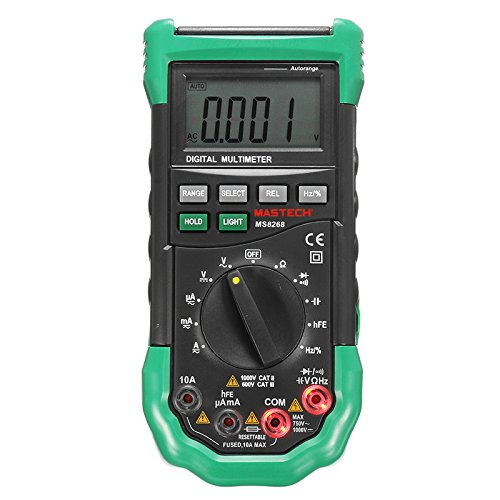

Mastech Ms8268 Digital Multimeter Auto Range For AC DC Ammeter Voltmeter Ohm Frequency Electric Tester Detector
Specifications:
DC voltage400m/4V/40V/400V ± 0.7%, 1000V ± 0.8%AC voltage400mV ± 3.0%, 4V/40V/400V ± 0.8%, 750V ± 1.0%Resistance400/4k/40k/400k/4MΩ ± 1.0%, 40MΩ ± 2.0%DC current400&muA/4000&muA/40mA/400mA ± 1.5%,10A ± 2.0%AC current400&muA/4000&muA/40mA/400mA ± 1.5%,10A ± 3.0%
Capacitance20n/200n/2&mu/20&muF ± 4.0%Frequency10/100/1000/10k/200kHz ± 2.0%Transistor hFE1 ~ 1000Sampling Rateapprox. 3 times / secondTest Leads1KV 10ASafety StandardsIEC1010-1, CAT. III 600V & CAT. II 1000VOperating Temperature0 ~ 40° C (32 ~ 104° F)Operating Humiditybelow 80% RH, <10° C non-condensing
Storage Temperature-10 ~ 60° C (14~ 140° F)Storage Humiditybelow 80% RHPower3 x 1.5V AAA batteriesDimensions195 mm x 92 mm x 55mm (7.68' X 3.62' X 2.17' inch)WeightApprox.380g (13.40oz) Features:
Display: 3 3/4 digital large LCD with 4000 countsManual & Auto rangesData holdBacklightFull overload protectionBuilt-resetable fuse protectionFuse Protection: mA and mA file: resettable fuse 10A file: F 10A/250V 6.332mmMisconnection alarm systemRed lights to show the correct terminalsAudible warning for over-range"Sleep mode", auto power off & low battery indicationUnit symbol displayContinuity testDiode testDuty Cycle MeasurementRelative value measurementPackage Included:
1 * MS8268 Digital multimeter (without battery)1 * Test Leads1 * English Manual
More Details:
Storage Temperature
