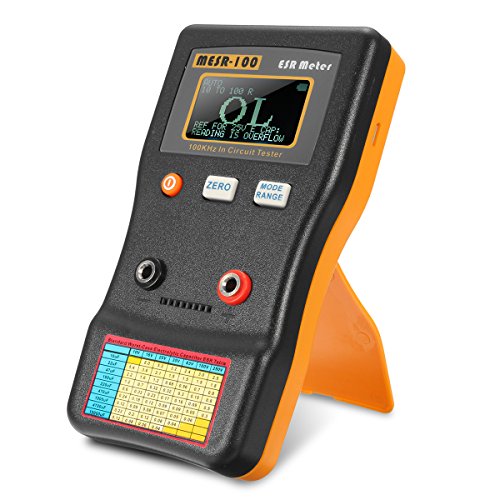

ILS - MESR-100 ESR Tester Capacitance Meter In Circuit Tester Resistance Range 0.001 to 100R
- メーカー
- ILS
- JAN
- 0659682119625
- メーカー品番
- 1212313
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
Specifications :
Name:ESR Capacitor Meter Tester
Range: 0.001 to 100R
Accuracy: Up to 1% (detail on above table)
Wide Measurement Range: >1uF (for 0.1uF the error will be larger on equation 1/(2*pi*F*C) @ 100Khz )
High Resolution: 4 digit, or 0.001Ohm @ 1 Ohm range
Measuring voltage: <~40mV RMS (TESTING VOLTAGE)
Clamping voltage: ~0.15V (open voltage)

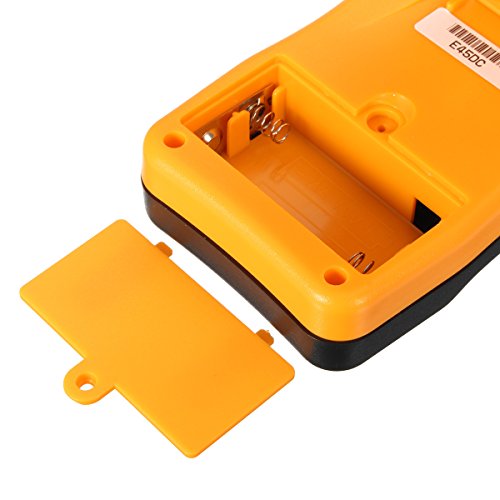

Battery: 2X AA 1.5V battery (not include in the packing)
External Power: 5V micro USB
Operating current 0.02A
Battery Life time: >80 HoursFeatures:

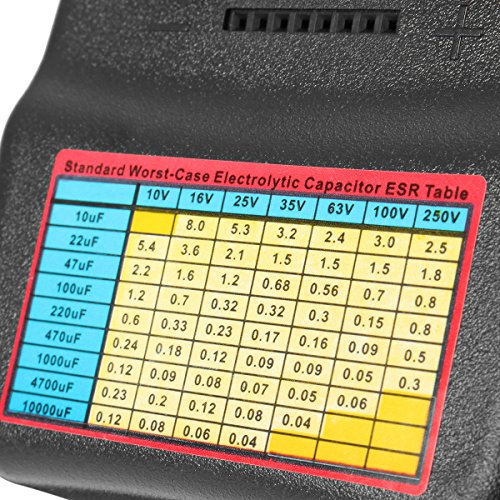

lMESR-100 ESR capacitance table, automatic range circuit ESR capacitor.

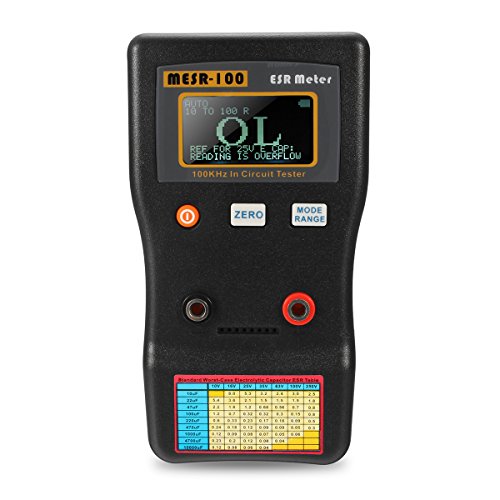

lCan accurately measure the internal resistance of the capacitor. Using LCD color screen.
lUsing a true 100kHz square wave to measure the ESR value, which is equal to the capacitor manufacturer's test method.

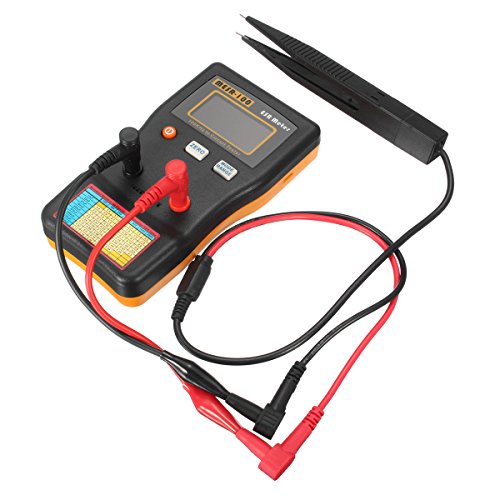

lWith 2 clips. A total of used to test the capacitance of the pin, a component for testing the patch, convenient.Package Included:

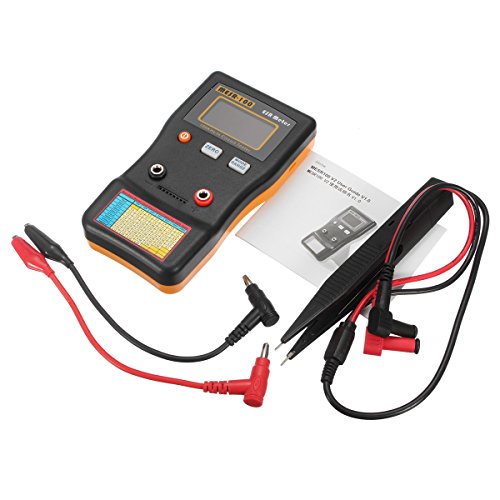

1 x MESR-100
1 x Pair of test probe
1 x Pair of Test Clip Probe
More details:
