Specifications:
Environment conditions600V CAT IIIPollution degree2Altitude< 2000mOperating temperature0~40°C(32~122°F) (<80%RH,<10°C non-condensing)Storage temperature-10~50°C (14~122°F) (<70%RH,battery removed)Max. Voltage Between Terminals And Earth Ground600V DC or ACDisplay20 mm LCDDisplay2000 countsMax. Show Value1999 (3 1/2)Polarity indication" - " indicates negative polarityOver range IndicationDisplay "OL"Sampling timeapprox. 0.4 secondUnit showingshowing of function and electrical capacityAutomatic power off time15 minPower supply1.5Vx2 AAA Battery (No included)Dimension208x38x29mm (LxWxH)Safety ratingETL CAT II 600V RoHS
Features:
- Auto Power Off- Logic Level Test: >3.5V: High Level <3.5V: Low Level- Diode: 2.7V- Continuity Buzzer: <50Ω- MaxImum Volue Hold- Data Hold- Low Battery Display- Retractable Tip for Safe Storage
- Auto range and manual range.- Accuracy is specified for a period of year after calibration and at 18°C to 28°C (64°F to 82°F) with relative humidity to 75%.
Parameters:
DC Voltage200mV/2V/20V/200V/600V+-(0.7%+2)AC Voltage200mV/2V/20V/200V
600V+-(0.8%+3)
+-(1.0%+3)DC Current20mA/200mA+-(1.5%+3)AC Current20mA/200mA+-(2.0%+3)Resistance200Ω
2KΩ/20KΩ/200KΩ/2MΩ
20MΩ+-(1.0%+3)
+-(1.0%+1)
+-(1.0%+5)
Package Included:

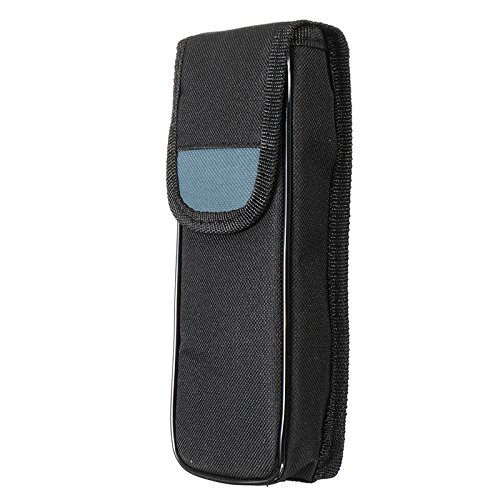

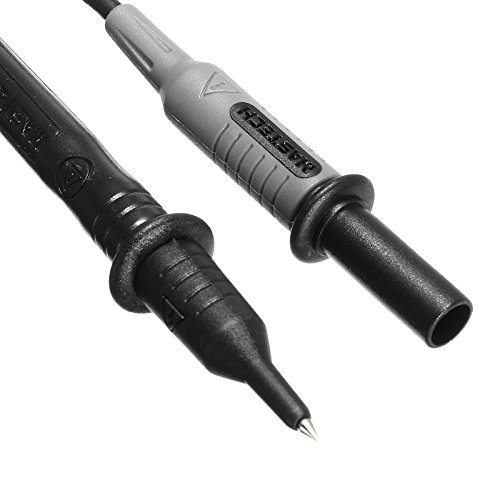

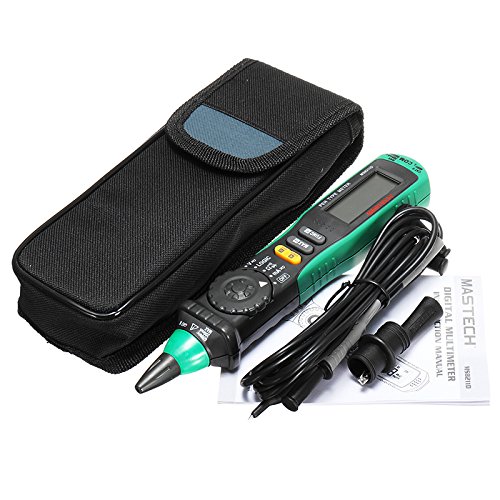

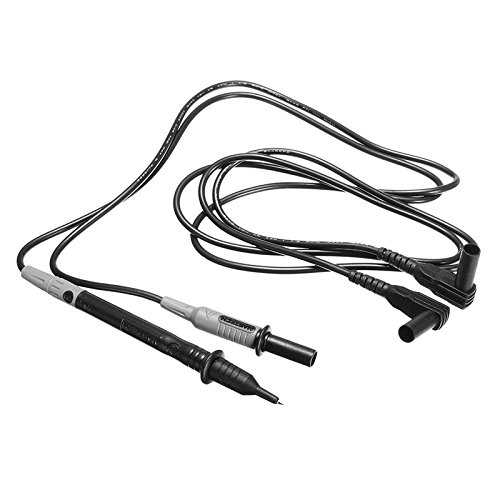

1 x MASTECH MS8211D Pen-Type LCD Digital Multimeter ( No including battery )1 x Test leads1 x Test clip1 x Carrying bag
