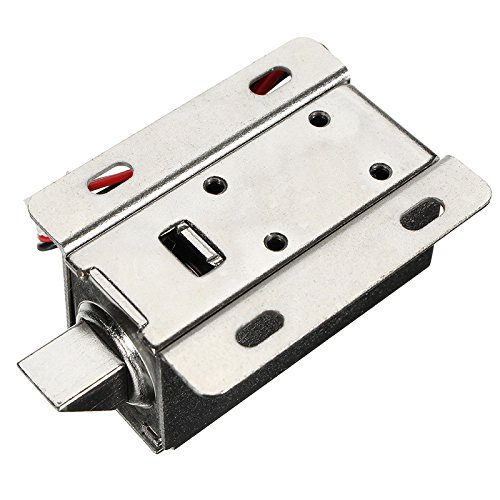

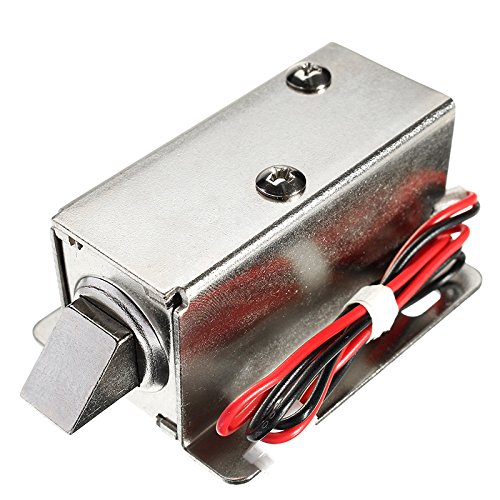

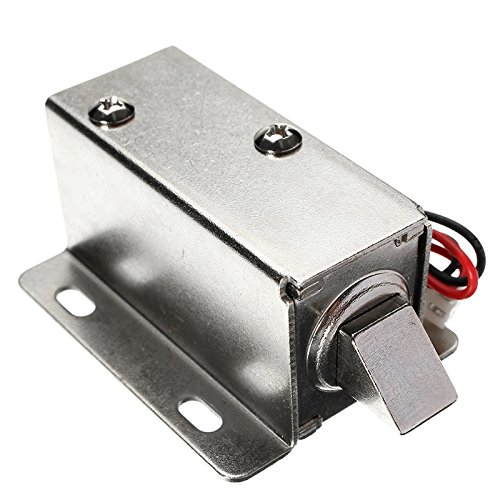

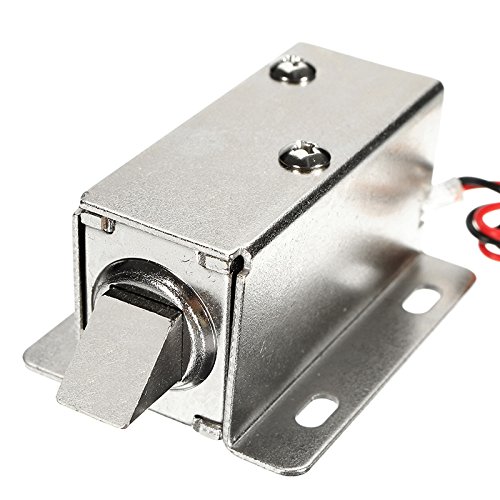

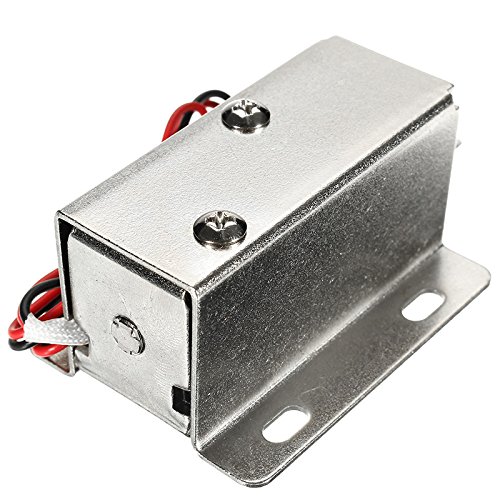

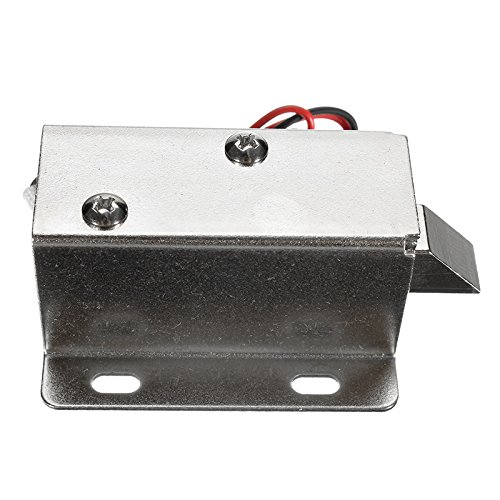

ILS - 24V DC 2.3A Electric Lock Assembly Solenoid Cabinet Door Drawer Lock

商品説明

Specification:
Voltage: DC 24V
Current: 2.3A
Energized Forms: Intermittent
Magnetic Force: 0.8kg
Unlocking Time: 1s
Continuously Energized: &le4s
Rated Stroke: 10mm

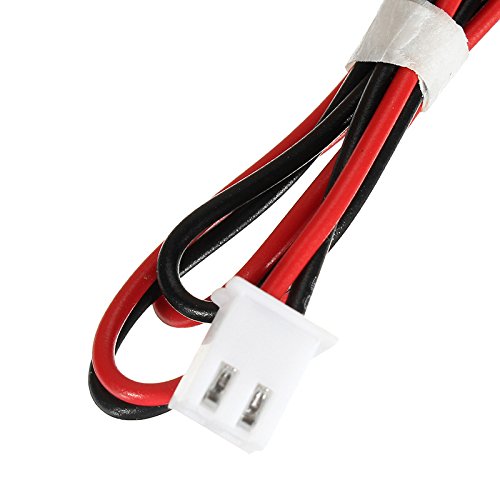

Cable Length: 240mm
Size: 54×42×28mm

Features:
1. Slim design, security and stability, low power consumption.
2. Designed with the open frame type and mount board, easy to installation.
3. Connected to a stable power supply, the central slug will be drawn and open when it's energized. And when it is not energized, the slug will stick out and close. It doesn't use any power in this state.
4. Suitable for doors, file cabinets, display cabinets, lockers, drawers, etc.

Package Included:
1 × Electric Cabinet Lock
