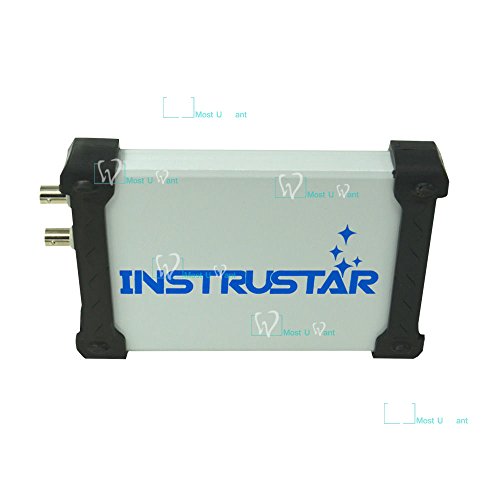

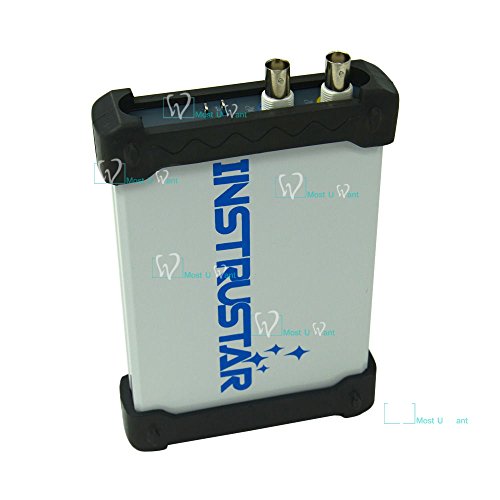

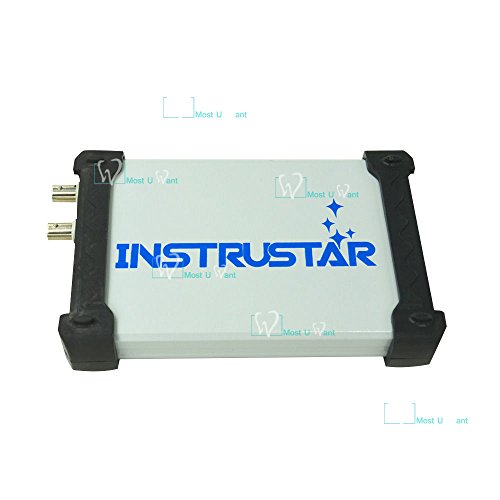

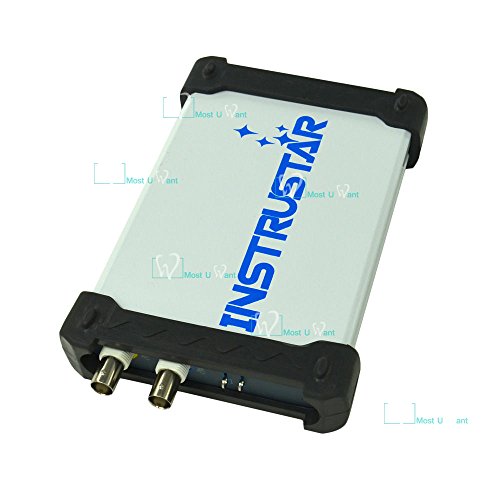

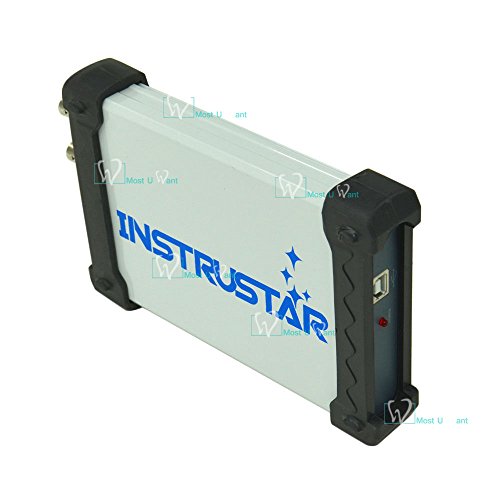

テスト機器PCベースの3in1のUSBデジタルオシロスコープ 2CH 20MHz 48MS/s スペクトラムアナライザデータロガー

商品説明

Digital oscilloscope Channels2 Impedance1MΩ 25pF CouplingAC/DC Vertical resolution8Bit Gain range-6V ~ 6V（probe X1） -60V ~ 60V（probe X10） Vertical accuracy±3% Timebase range1ns-20s Input ProtectionDiode，50Vpk AutosetYes(10Hz to 20MHz) Trigger ModeAuto、Normal and Signal Trigger TypeNo、Rising edge、Falling edge、 Rising edge or Falling edge Trigger levelYes Trigger SourceCH1, CH2 Buffer Size1MB/CH Bandwidth20MHz Max sample48MS/s Vertical modeCH1, CH2, ADD, SUB, MUL Display ModeX、Y-T and X-Y measurementsYes Wave saveOsc(Private)、Excel and Bmp Spectrum analyzers Channels2 Bandwidth20MHz AlgorithmFFT(18 windows)、correlation、power spectrum FFT points8-1048576/CHN FFT measureHarmonic(1-7)、SNR、SINAD、ENOB、THD、SFDR Filter processingFIR filter supports arbitrary range of frequency sampling method , and Rectangle, bartlett, triangular, cosine, hanning, bartlett_hanning, hamming, blackman, blackman_Harris, tukey, Nuttall, FlatTop, Bohman, Parzen, Lanczos, kaiser, gaussand dolph_chebyshev, window method design. IIR filter support "Butterworth", "Chebyshev I", "Chebyshev II", "Elliptic" type of filter design Data recorder Channel 2 Impedance1MΩ 25pF CouplingAC/DC Vertical resolution8Bit Gain range-6V ~ 6V（probe X1） -60V ~ 60V（probe X10） Sample1 channel : 1K~24M Hz 2 channel : 1K~16M Hz Save FileThe maximum 4G, recording time associated with the sampling rate
