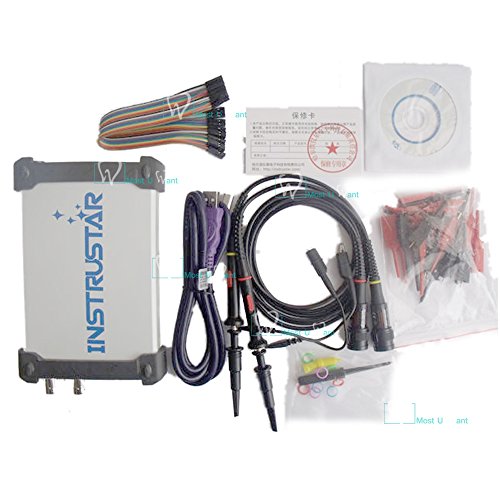

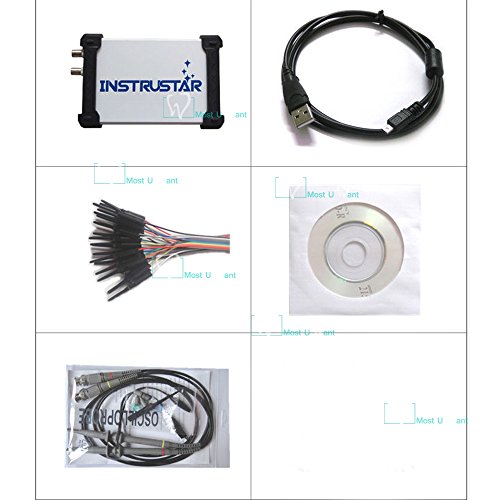

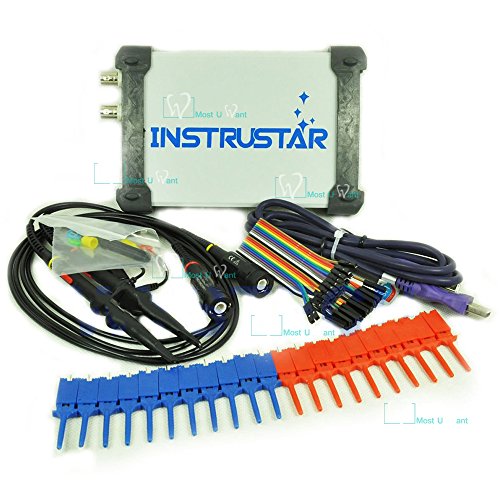

テスト機器PCベースのUSB 4in1 デジタルオシロスコープ 2CH 20MHz 48MS/s スペクトラムアナライザデータレコーダ16チャンネルのロジック・アナライザ

商品説明

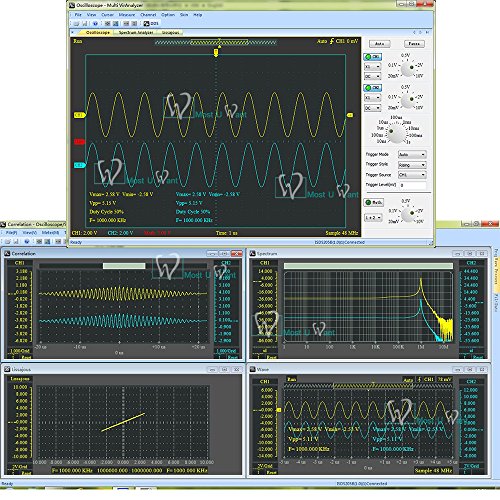

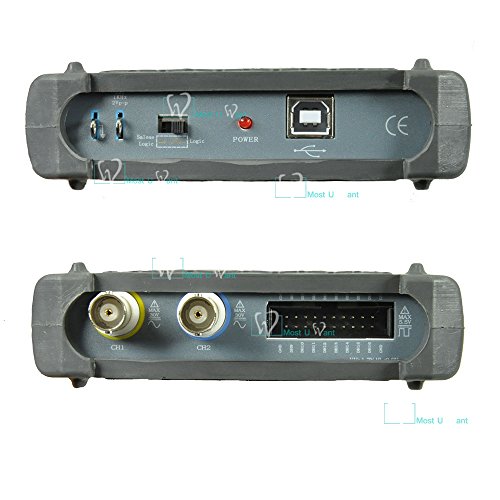

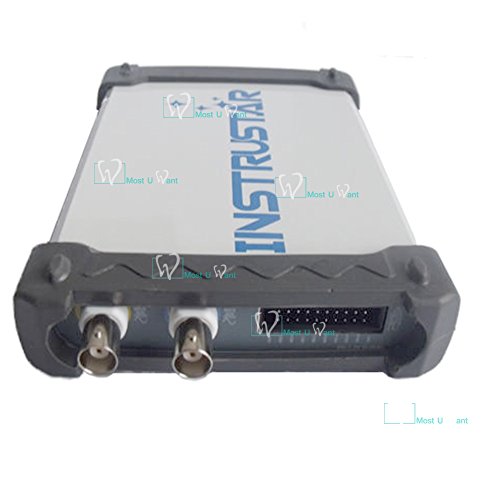

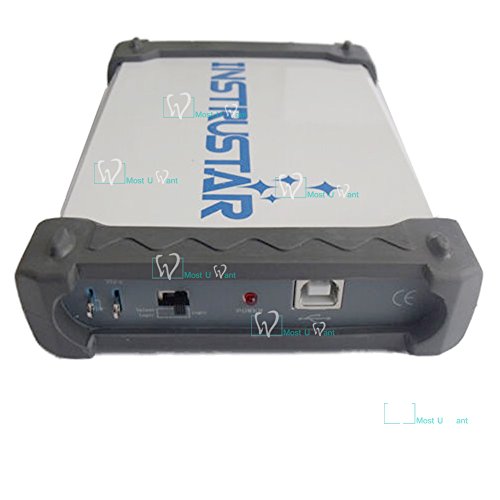

Digital oscilloscope

Channels2
Impedance1MΩ 25pF
CouplingAC/DC
Vertical resolution8Bit
Gain range-6V ~ 6V（probe X1）
-60V ~ 60V（probe X10）
Vertical accuracy+-3%
Timebase range1ns-20s
Input ProtectionDiode，50Vpk
AutosetYes(10Hz to 20MHz)
Trigger ModeAuto、Normal and Signal
Trigger TypeNo、Rising edge、Falling edge、 Rising edge or Falling edge
Trigger levelYes
Trigger SourceCH1, CH2
Buffer Size1MB/CH
Bandwidth20MHz
Max sample48MS/s
Vertical modeCH1, CH2, ADD, SUB, MUL
Display ModeX、Y-T and X-Y
measurementsYes
Wave saveOsc(Private)、Excel and Bmp

Spectrum analyzers

Channels2
Bandwidth20MHz
AlgorithmFFT(18 windows)、correlation、power spectrum
FFT points8-1048576/CHN
IIR filter support "Butterworth", "Chebyshev I", "Chebyshev II", "Elliptic" type of filter design

Data recorder

Channel 2
Impedance1MΩ 25pF
CouplingAC/DC
Vertical resolution8Bit
Gain range-6V ~ 6V（probe X1）
-60V ~ 60V（probe X10）
Sample1 channel : 1K~24M Hz
2 channel : 1K~16M Hz
Save FileThe maximum 4G, recording time associated with the sampling rate

Logic Analyzer


Channel:16
Sample:8 channel: 250K~24M Hz
16 channel: 250K~16M Hz
Sample points:1M-2GB

Saleae Logic Logic Analyzer
Channel:8
Sample:25K~24M Hz
Protocol Analyzer:Atmel SWI, BiSS C, SPI, I2C, CAN, UART, I2S/PCM, DMX-512, JTAG, LIN, Manchester, 1-WIRE, UNI/O, Simple Parallel, MDIO, USB1.1, PS/2 Keyboard/Mouse
Sample points:1MB~10TB
