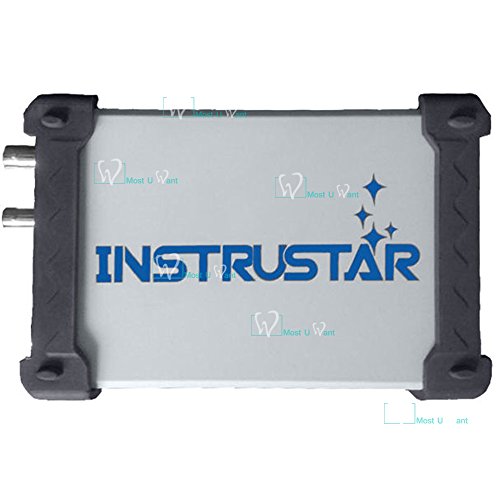

テスト機器PCベースのUSB 2in1 デジタルオシロスコープ 2CH 40MHz 100MSa/s スペクトラムアナライザ

商品説明

Digital oscilloscope

Channels:2
Impedance:1MΩ 25pF
Coupling:AC/DC
Vertical resolution:8Bit
Voltage Range:Probe X1 file:-16V ~ 16V, X10 file -160V~160
Vertical accuracy:±3%
Time base range:1ns-20s
Vertical adjustable:10mV/div-10V/div（1MΩ）
Input Protection:Diode clamping
Automatically set:There are (10Hz to 40MHz)
Trigger:Automatic, continuous , single
Trigger Slope:+/-
Trigger level adjustable:Have
Trigger Type:Simulation
Trigger Source:CH1, CH2
Memory depth:256KB/CH
Single bandwidth:40MHz
The maximum real-time sampling rate:100MS/s
Sampling rate selection:Have
Vertical mode:CH1, CH2, ADD, SUB, MUL
Display Mode:Alternating X , Y and X-Y mode alternately
Cursor measurements:Have
The cursor is displaye:Frequency, voltage
Waveform save format:Osc ( private ), Excel and Bmp

Spectrum analyzers

Channels: 2
Bandwidth:40MHz
Algorithm:FFT (18kinds of window ) , correlation, power spectrum
FFT data points:8-1048576 per channel
Filtering:FIR supports arbitrary amplitude frequency sampling method and Rectangle、bartlett、triangular、cosine、hanning、bartlett_hanning、hamming、blackman、
blackman_Harris、
tukey、Nuttall、FlatTop、Bohman、Parzen、Lanczos、kaiser、gauss window function method；
IIR filter support " Butterworth ", " Chebyshev I", " Chebyshev II", " oval " type ;
