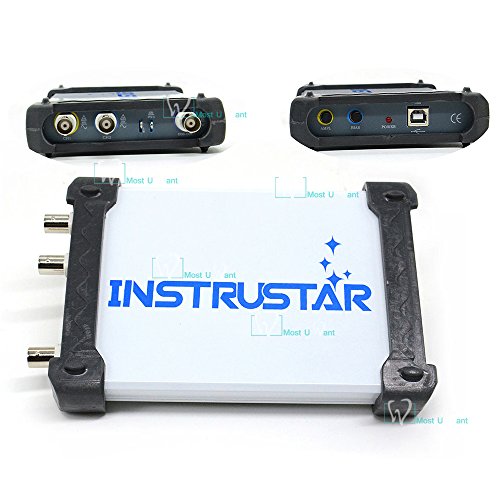

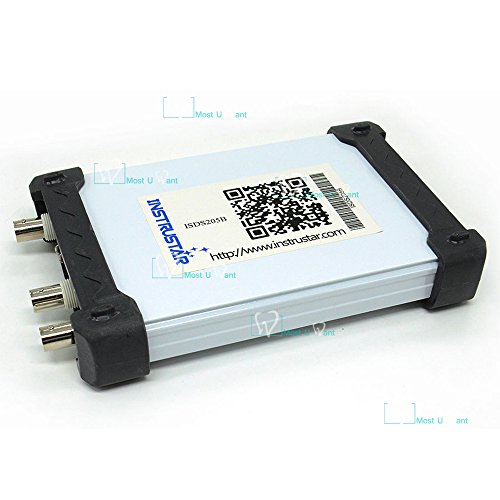

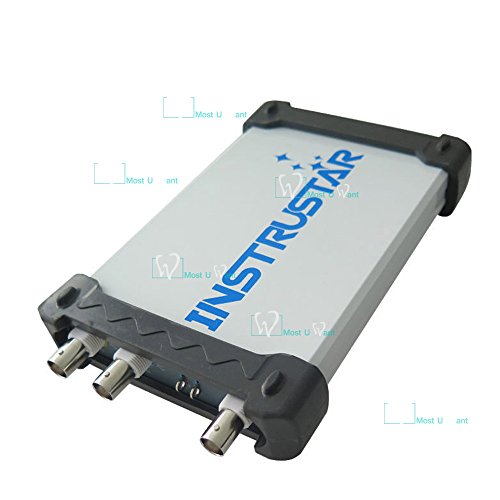

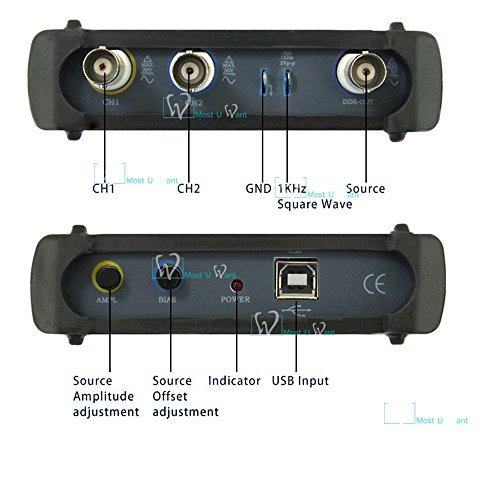

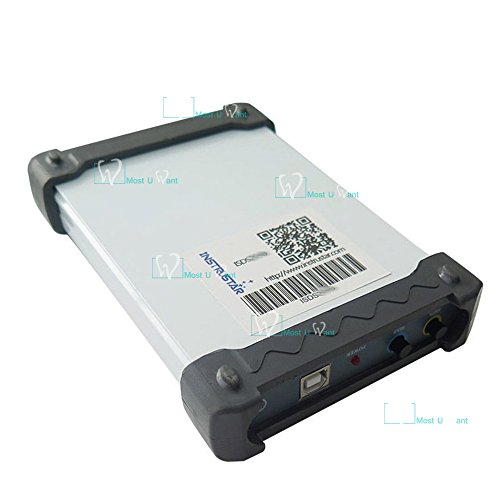

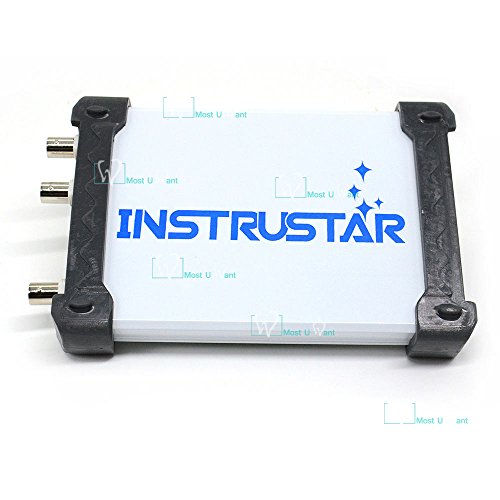

試験機器PCベースのデジタル USB 仮想オシロスコープ 2CH 20MHz 60MSa/s 12bit ADC FFT スペクトラムアナライザ DDS

商品説明

Digital oscilloscope

Channels2
Impedance1MΩ 25pF
CouplingAC/DC
Vertical resolution8Bit
Gain range-32V ~ 32V（probe X1）
-320V ~ 320V（probe X10）
Vertical accuracy±3%
Timebase range1ns-20s
Input ProtectionDiode，50Vpk
AutosetYes(10Hz to 20MHz)
Trigger ModeAuto、Normal and Signal
Trigger TypeNo、Rising edge、Falling edge、 Rising edge or Falling edge
Trigger levelYes
Trigger SourceCH1, CH2
Buffer Size256KB/CH
Bandwidth20MHz
Max sample60MS/s
Vertical modeCH1, CH2, ADD, SUB, MUL
Display ModeX、Y-T and X-Y
measurementsYes
Wave saveOsc(Private)、Excel and Bmp

Spectrum analyzers

Channels2
Bandwidth20MHz
AlgorithmFFT(18 windows)、correlation、power spectrum
FFT points8-1048576/CHN
FFT measureHarmonic(1-7)、SNR、SINAD、ENOB、THD、SFDR
Filter processingFIR filter supports arbitrary range of frequency sampling method , and Rectangle, bartlett, triangular, cosine, hanning, bartlett_hanning, hamming, blackman, blackman_Harris, tukey, Nuttall, FlatTop, Bohman, Parzen, Lanczos, kaiser, gaussand dolph_chebyshev, window method design.
IIR filter support "Butterworth", "Chebyshev I", "Chebyshev II", "Elliptic" type of filter design
