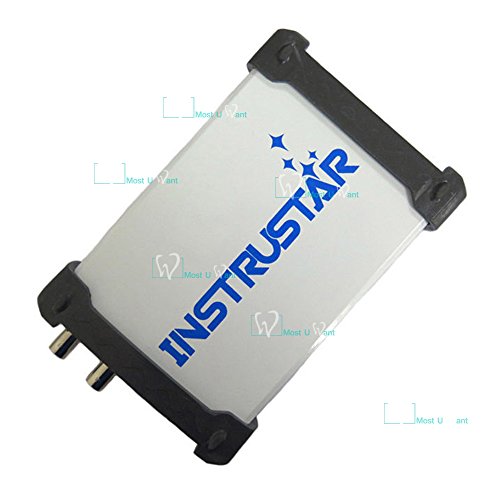

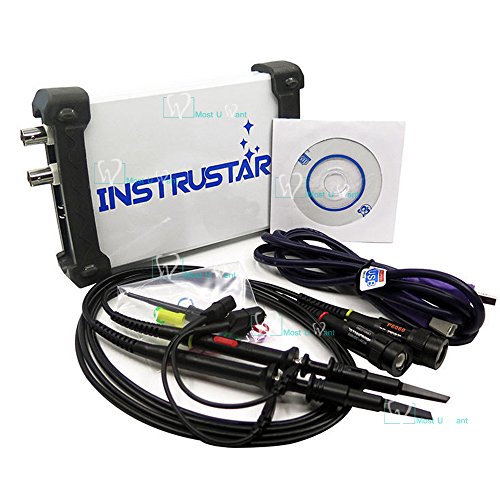

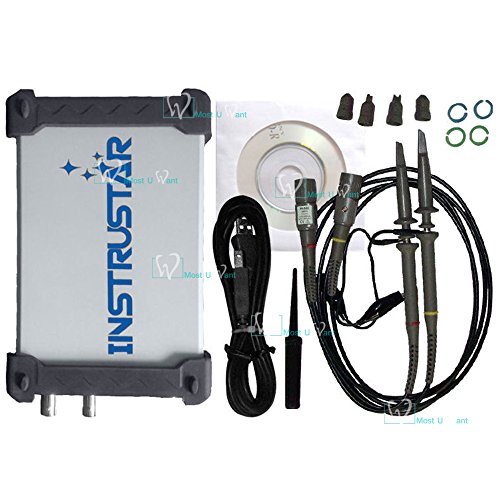

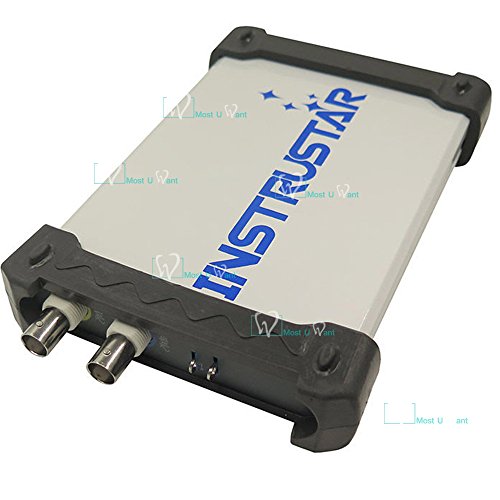

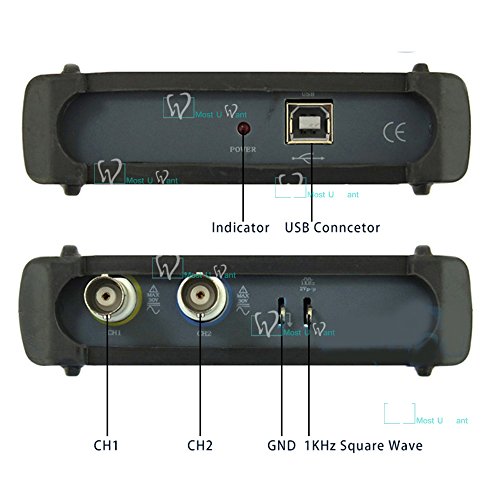

テスト機器PCベースのUSBデジタルオシロスコープ 2IN1 2CH 60MHz 200MSa/ sのスペクトラムアナライザ

商品説明

Digital oscilloscope

Channels2
Impedance1MΩ 25pF
CouplingAC/DC
Vertical resolution8Bit
Gain range-6V ~ 6V（probe X1）
-160V ~ 160V（probe X10）
Vertical accuracy±3%
Timebase range1ns-20s
Input ProtectionDiode，50Vpk
AutosetYes(10Hz to 60MHz)
Trigger ModeAuto、Normal and Signal
Trigger TypeNo、Rising edge、Falling edge、
Rising edge or Falling edge
Trigger levelYes
Trigger SourceCH1, CH2
Buffer Size512KB/CH
Bandwidth60MHz
Max sample200MS/s
Vertical modeCH1, CH2, ADD, SUB, MUL
Display ModeX、Y-T and X-Y
measurementsYes
Wave saveOsc(Private)、Excel and Bmp

Spectrum analyzers

Channels2
Bandwidth60MHz
AlgorithmFFT(18 windows)、correlation、power spectrum
FFT points8-1048576/CHN
FFT measureHarmonic(1-7)、SNR、SINAD、ENOB、THD、SFDR

DDS

Wave:Sine, Square(Duty circle variable),Triangle,Up Sawtooth,Down Sawtooth
Amplitude:≥9Vp-p(no load)
Impedance:200Ω±10%
Offset:±2.5V
Frequency range:1Hz ~ 20MHz(Sine), 1Hz ~ 2MHz(Others)
Frequency resolution:1Hz
Frequency steadiness :±1×10-3
Frequency precision:±5×10-3
Triangular wave linearity:≥98% (1Hz~10kHz)
Sine wave distortion:≤0.8% (1kHz)
Square wave rising/falling time:≤100ns
Square wave duty circle:1%~99%

SWEEP
Sweep range:Fs to Fe
Sweep time range:0.1 ~10 s
Amplitude:0.5Vp-p ~ 10Vp-p
Sweep Style:Linear Sweep、Log Sweep
Linear Sweep Range:1Hz-20MHz, Min 1Hz step
Log Sweep Range:1Hz-10MHz, 1,10,100....Logarithmic step
