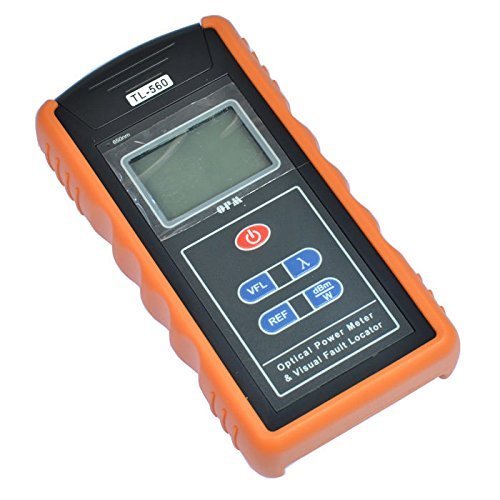

J-DEAL Optical Power Fiber Meter & 10mW Visual Fault Locator TL-560 [並行輸入品]
- メーカー
- J-DEAL
- ブランド
- J-Deal
- JAN
- 0600748648405
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
Features
Self-calibration function.
High performance import laser detector.
High sensitivity and large dynamic range
0.01 dBm precision
Automatically converted Range
Small size, light weight, high reliability
Battery-powered, convenient field work
Line display or relative loss displayed.
Applications
Fiber optic production and research
Testing and maintenance of fiber-optic network
Teaching and testing in optical communication
Specification
Mini Optical Power Meter
Model: TL-560
Wavelength(nm)
850,1300,1310,1490,1550,1625nm
Detector
InGaAs
Measurement Range (dBm)
-70~+6
Uncertainty
±5%
Calibrated Wavelength(nm)
850,1300,1310,1490,1550,1625nm
Resolution(dB)
0.01

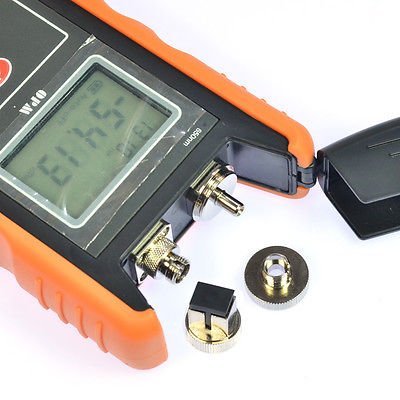

Optical Connector
FC(interchangeable SC,ST) / as well as 2.5mm universal
Power Supply
Alkaline Battery(2xAA)Without Batteries
Battery Operating Time
360 hours with three 1.5V batteries
Operating Temperature(°C)
-10 ~ +60
Storage Temperature(°C)
-25 ~ +70
Relative Humidity
0 to 95% (non-condensing)
