KKmoon Mini Fiber Optic GE EPON ONU Modem 10/100/1000Mbps, PON Port + LAN Port + Reset + Power Port/Switch [並行輸入品]

商品説明

It fully complies with IEEE 802.3-2005 and the China Telecom EPON device technical specification (V2.1). It is operative, manageable and maintainable at telecommunication level, and can provide high speed data service for customers. It has a PON uplink port that connects to office and apparatus through optical fiber.

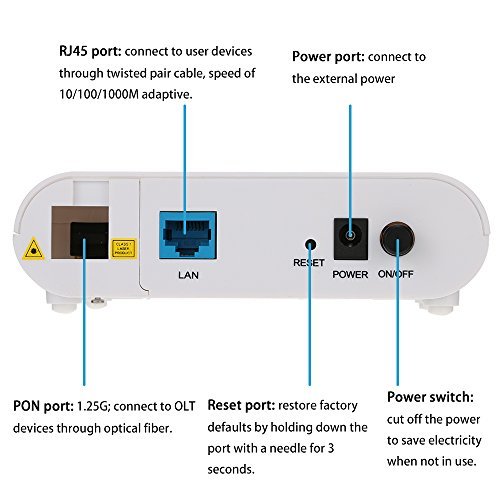

Port features:
PON port: 1.25G; connect to OLT devices through optical fiber.
RJ45 port: connect to user devices through twisted pair cable, speed of 10/100/1000M adaptive.
Reset port: restore factory defaults by holding down the port with a needle for 3 seconds.
Power port: connect to the external power supply.
Power switch: cut off the power to save electricity when not in use.

Optical features:
Interface type: SC/PC
Maximum splitting ratio: 1:32
Speed: longitudinal symmetry 1.25Gbps
Maximum distance between OLT and ONU up to 20km

Physical features:
Power supply: 12V DC
Power consumption: 6W
Working temperature: 0〜55℃
Storage temperature: -30〜60℃
Relative humidity: 10〜90% (non-condensing)

Specifications:
Power adapter plug: US or EU (Optional)
Item size: 13 * 10.1 * 3.8cm / 5.12 * 3.98 * 1.5in (L * W * H)
Item weight: 155g / 5.48oz
Package size: 20 * 13.8 * 4.2cm / 7.87 * 5.43 * 1.65in (L * W * H)
Package weight: 287g / 10.14oz

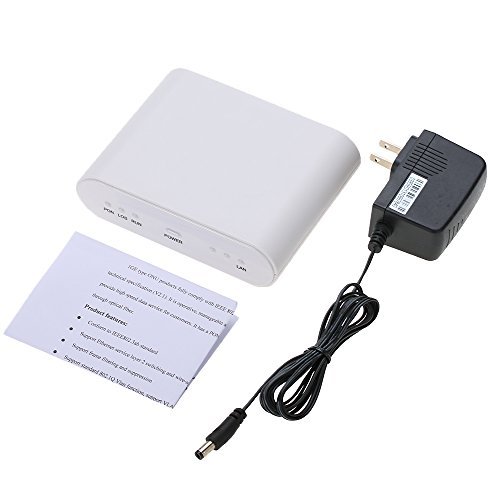

Package list:
1 * Optical modem
1 * Accessories bag
1 * Power adapter
1 * User manual (English)
