Professional 7-Piece Silver HVLP Spray Gun Kit Auto Paint Gravity Feed 3 Sprayer [並行輸入品]

商品説明

Features:

Designed to provide equal atomization and partical size for all kinds of surface painting.
Precise 1.8mm,1.4mm & 1.0mm stainless steel needle and nozzle set.
A aluminum carrying case w/ locks for easily taking with
Comes with a air regulator with gauge as free gift
CE, GS certification
Applicants:

1.8mm set-up is ideal for the atomization of primers, sealers, thinned latex/oil base, and other medium to heavy viscosity coatings.
This 1.4mm set-up for spraying basecoats, clearcoats, single stage and other light to medium viscosity coatings.
1.0mm spray gun used for tight areas, small jobs and touch up

Specifications:

Spray Gun Full Size Spray Guns Mini Size Spray Gun
Nozzle Size 1.8 mm 1.4 mm 1.0 mm
Air Inlet 1/4"
Type of Feed Gravity
Recommended Air Pressure 0-43 psi (0-2.9 bar) 0-30 psi (0-2 bar)
Max. Pressure of Air 43 psi (2.9 bar) 30 psi (2 bar)
Paint Capacity 1000 ml 100 ml
Average Air Consumption 5-10 cfm 1-4 cfm
Pattern Width 6.3"-9.4" (160-240mm) 3.1"-3.9" (80-100 mm)
Operating Pressure 87 - 116 psi

Fine Adjustment:

The desired pattern and fine atomization can be easily obtained by regulating the Pattern Adjusting Knob and Fluid Adjusting Knob.
Pattern Adjustment: Turn the Pattern Adjusting Knob to the right until tight will make spray pattern round, or turn left make spray pattern ellipse.
Fluid Adjustment: Turn the Fluid Adjusting Knob clockwise will decrease the volume of fluid output and counter-clockwise will increase fluid output.

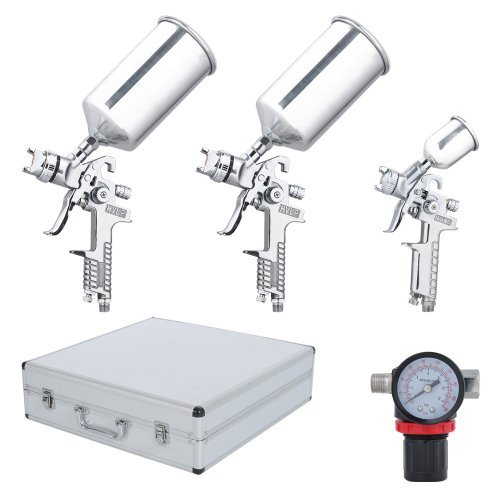

Package Content:

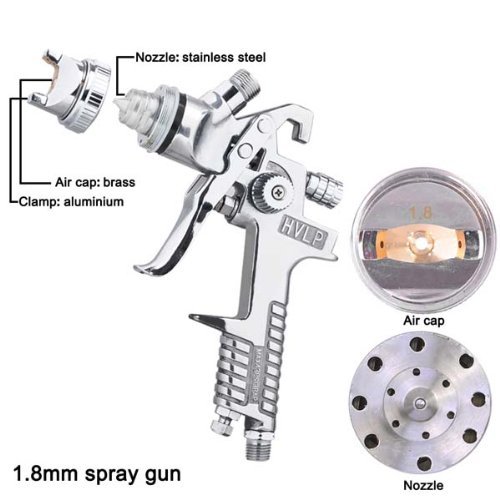

1x 1.8mm HVLP primer spray gun
1x 1.4mm HVLP topcoat spray gun

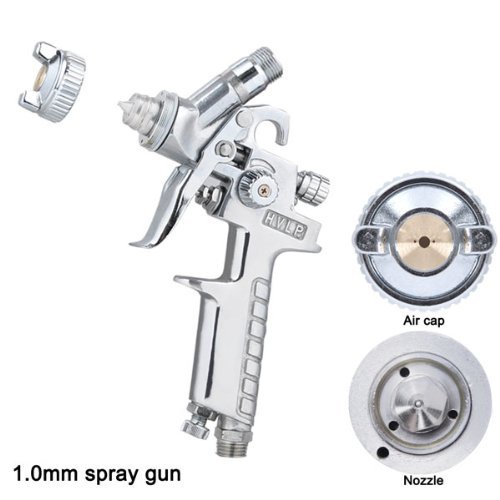

1x 1.0mm HVLP touch-up spray gun

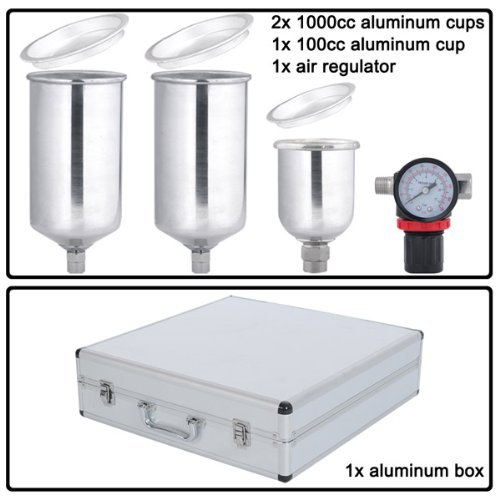

2x 1000ml aluminum cups w/ lids
1x 100ml aluminum cup w/ lid
1x Locking air pressure regulator w/ gauge

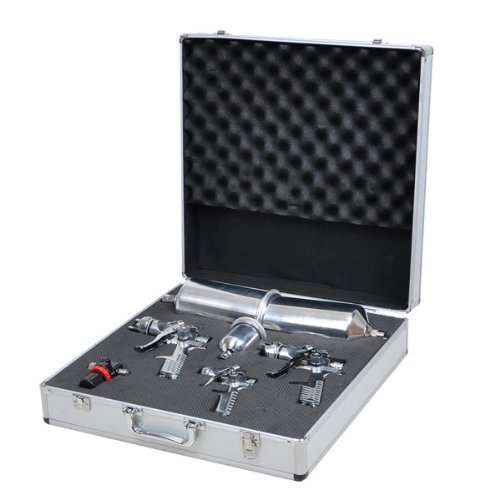

1x Aluminum carrying box
1x Instruction manual
