ネイプ＆フォークトKv8407 B16 16で。シェルフタブとの完全な拡張スライド
商品説明

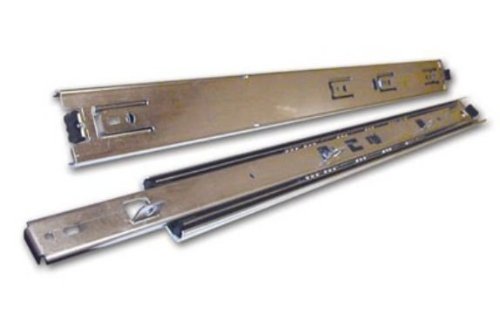

KV8407 precision ball-bearing full-extension slides with horizontal mounting tabs allowing attachment from the bottom. Perfect for a shelf or roll out tray.
Load Rating: 100 lbs.
Side Clearance: 1/2" - 1/32" - 0.
Mounting: Side for frame and frameless.
Side Height: 1-13/16".
Progressive telescopic movement on precision steel ball bearings.
Full 32mm hole pattern with direct access mounting and adjustment.
Lever disconnect for easy drawer removal; ball retainer latch and ramps for easy drawer insertion.
Left and right handed slides.
Metal ball retainer holds three bearings per inch of race for smooth and quiet motion.
Specification.
Type: Ball Bearing Slide.
Color: Anochrome.
Application: 32mm Lole pattern.
Style: Left/right handed.
Load Rating: 100 lbs.
Closing Action: Stay close.
Height: 1-13/16".
Extension: Full.
Accessories: KV8400 Mounting Brackets,KTNZ03,KTNZ03 B.
Screws Included: Yes.
Side Clearance: 1/2".
Size: 16".
