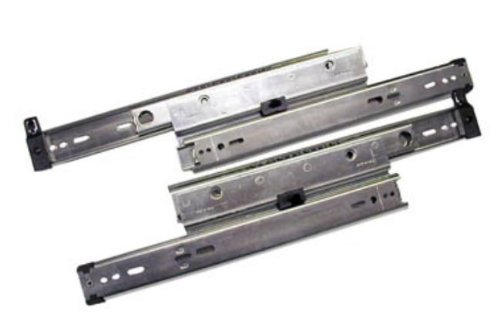

ネイプ＆フォークトKv8505 P22 22で。フルエクステンション150 Lbをオーバトラベルと引き出しスライドファイル - 亜鉛
商品説明
Load rating: 150lbs.
Progressive 1-1/2" Overtravel.
Side Mounted: 1/2" plus 1/32" minus 0 each side.
Material: Electro zinc-plated and lacquered cold rolled steel.
Action: Heavy duty progressive full extension on precision steel ball bearing. 3 ball bearings per inch of race.
32mm Hole pattern for system mounting.
Factory attached drawer release clips with non-handed quick disconnect drawer members.
Hold-in feature to prevent bounce back.
Specification.
Type: Ball Bearing Slide.
Color: Zinc.
Style: Left/right handed.
Closing Action: Stay close.
Height: 3-51/64".
Related Products: KV8520, KV8525.
Accessories: KTNZ03, B295.4000, BZRM.
Screws Included: Yes.
Side Clearance: 1/2".
Size: 22".
