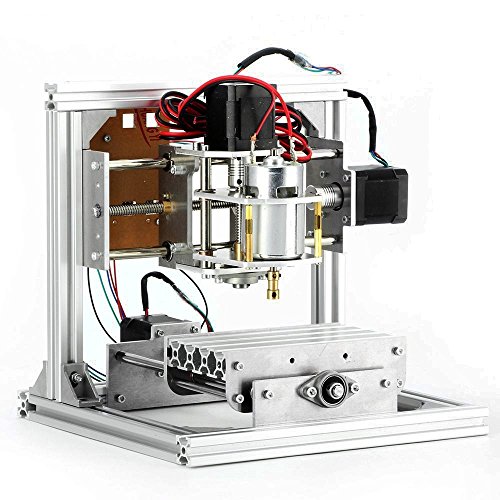

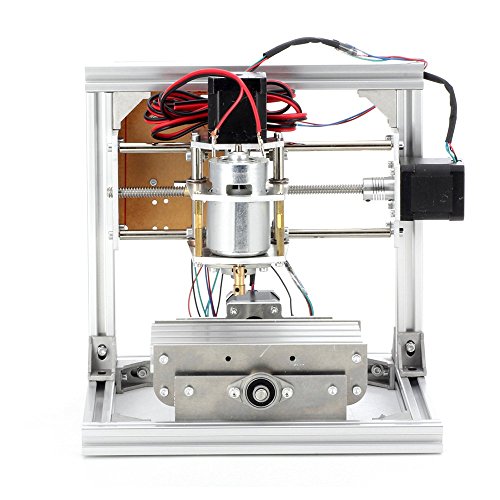

Konmison 3 Axis CNC DIY Router Machine Engraving Machine PCB Milling Machine CNC Wood Carving Mini Engraving Router [並行輸入品]
- メーカー
- Konmison
- JAN
- 0600346598003
- メーカー品番
- 202125
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
The warranty time: 12 months. We offer you the best service, if you have any questions, please contact us, we will always help you..
Feature:
Dimensions: 250 * 250 * 270MM (9.8'' * 9.8'' * 10.6'')
Working Area 130 * 100 * 40mm (5.1'' * 3.9'' * 1.6'')
Carving stroke: 130 * 100MM (5.1'' * 3.9'')
Screw: M6 threaded rod (4 mm or screw T8)
Stepper motor: nema 17
Voltage: 24V5A switching power supply and two 12V5A
Spindle: 42MM (1.7'') diameter, 775 motor
Package inclued:

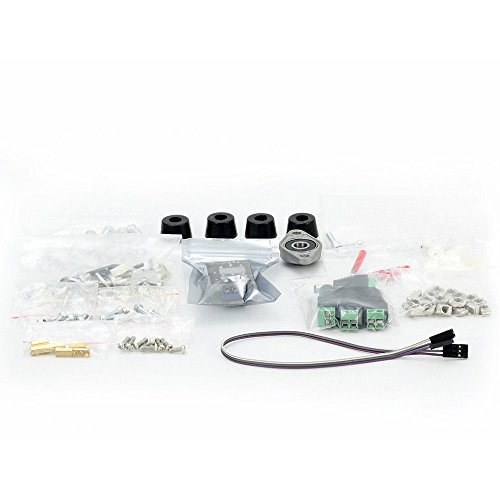

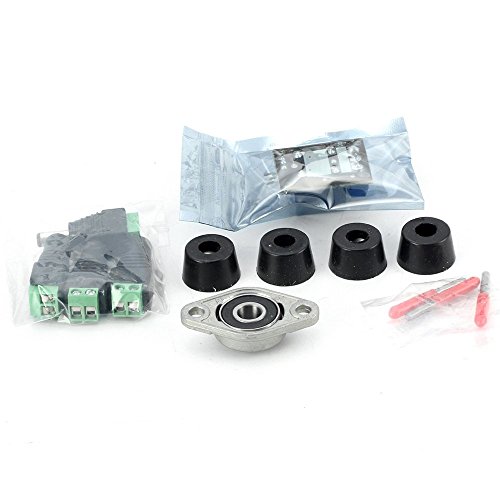

1x engraving machine (All parts of the mechanical parts)
Attention:
First, in these assembly units, axle X is horizontal axis of the upright; axle Y is the pedestal; axle Z is the vertical direction. Depends on your habit to set the positive and the negative direction.
Second, If these three axles adjust bad, they will be stuck or not smooth, in this situation, you should loosen the screws and push it until they are smooth, and then you should tighten it.
Third, if the tail of the lead screw swing, it's not the lead screw is crooked, but the motor shaft of the lead screw and the lead screw are not adjusting in the same line.

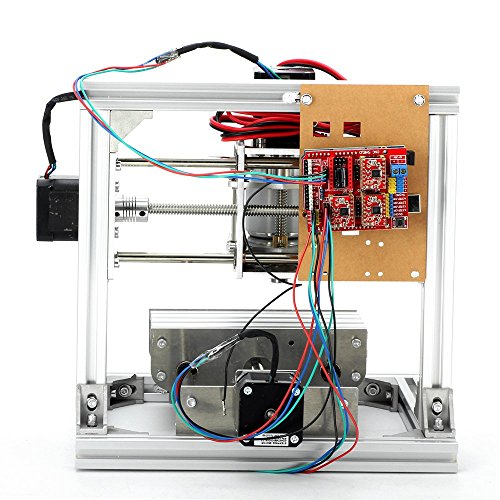

Fourth, ARDUINO UNO (blue), doesn't need to connect the power, and it is prohibit connect 24V power.
特記事項
- 新品、並行輸入品です。Brand new parallel imports from the US.
- For study and research. Requires self-assembly and commissioning, assembly requires a certain mechanical knowledge. Plz contact me for all documents and software.(we promise full money refund within 30 dyas if it has quality issues)
- This is a miniature CNC engraving machine, the software just can work with win 7.
- Working Area 130 * 100 * 40mm (5.1'' * 3.9'' * 1.6''); Stepper motor: nema17.

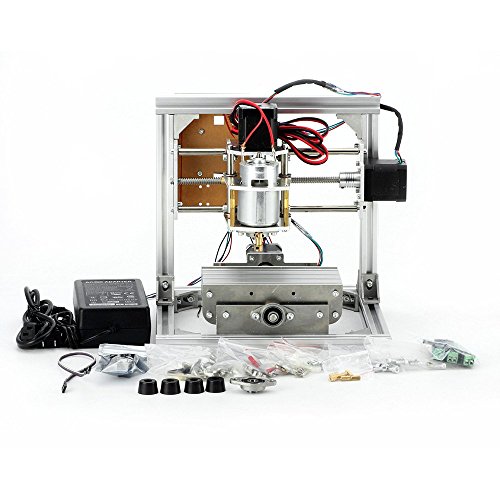

- The package include all parts of the mechanical parts. ( electronic control board, stepper motors, frame, power supply and so on )
