Konmison Multifunction Worktable Milling Working Table Milling Machine Compound Drilling Slide Table For Bench Drill [並行輸入品]
- メーカー
- Konmison
- JAN
- 0600346598010
- メーカー品番
- 202171
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
Feature:
Material: Aluminium

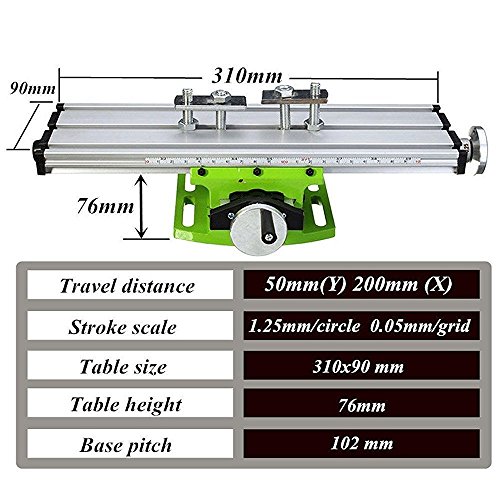

Table size: 300 * 90mm
X -axis travel: 200mm
Y-axis travel: 50mm

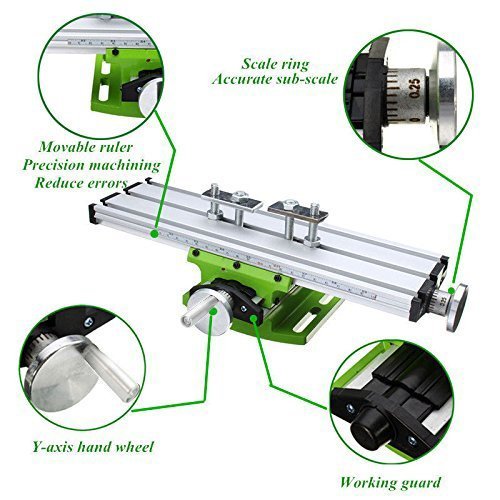

X Y-axis scale adjustment
Distance of grooves: 34mm
T-slot size: standard size slot is 15 X 8 X 6mm
Cale travel: 1.25mm (circle), 0.05mm (one cell)
Package includes:
1 pc of milling machine/compound table/cnc milling machine
特記事項
- 新品、並行輸入品です。Brand new parallel imports from the US.
- The table is suitable for Mini Drill and drill bracket series. It can also apply to other suitable machine.

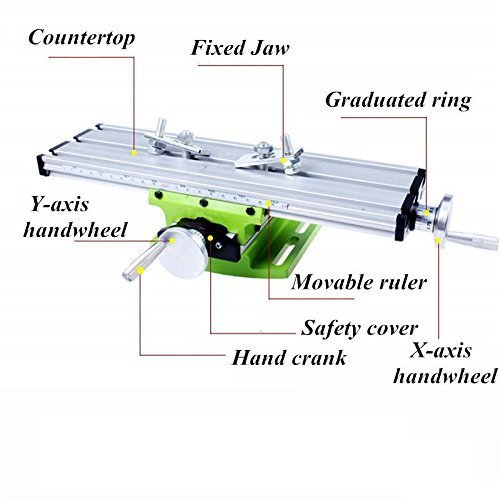

- The work table is composed of several adjustable dovetail slotaluminum alloy composition, can guarantee the minimumspace and ensure the accuracy.
- The working table with three T shaped groove, standard size is 15x8x6mm. Scale is in front of the movable positioning.
- Zero adjustment handwheel rotates a circle of 1.25mm. A lattice is equal to 0.05mm.
