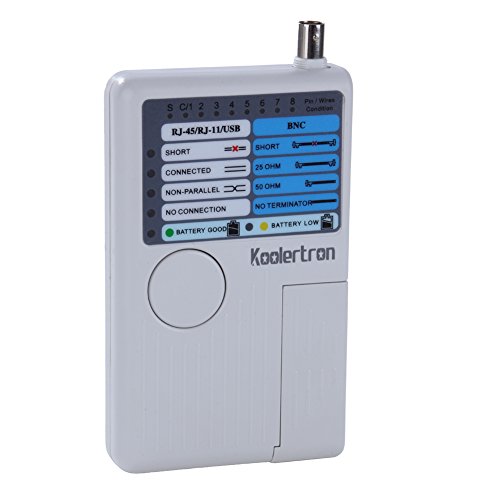

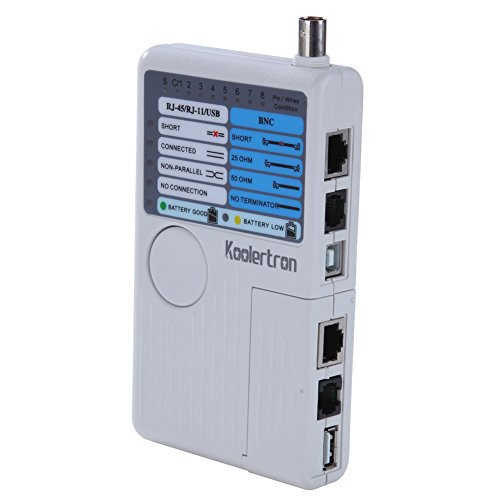

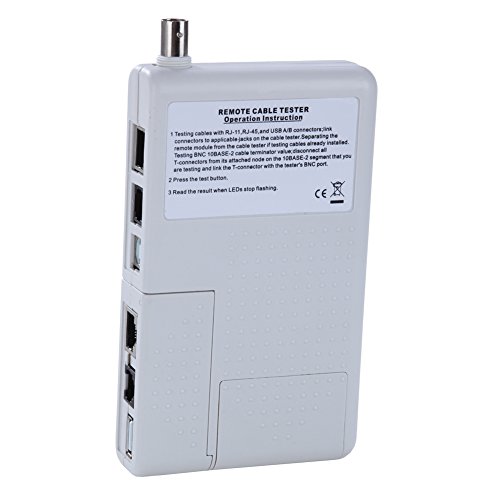

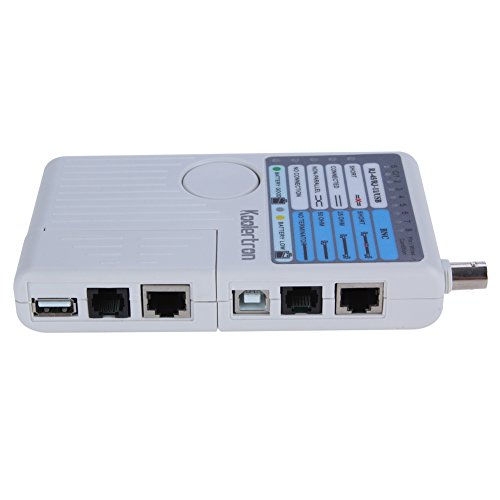

Koolertron 4-in-1 リモート機能 RJ11/RJ45/USB/BNC LANネットワーク ケーブルテスターメーター
- メーカー
- Koolertron
- ブランド
- koolertron
- JAN
- 0840148259003
- メーカー品番
- WLCS01
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
Specifications:
Cable Tested:UTP and STP LAN cables, terminated in RJ-45 male connectors (EIA/TIA 568); RJ-11 cables with male connectors, 2 to 6 conductors installed;USB cables with Type A flat plug on one end and type B square Plug on other end;BNC cables with male connectors
Faults Indicated: No Connections, Shorts, Opens and Crossover
Low Battery Indicator: LED lights to indicate low battery
Power: 1 x 9 V 6F22 DC Alkaline Battery (Battery Not Included)
Color: Grey
Item dimensions: Appox. 162 x 85 x 25mm (6.38 x 3.35 x 0.98 inch)
Item weight: 164g (Battery excluded)

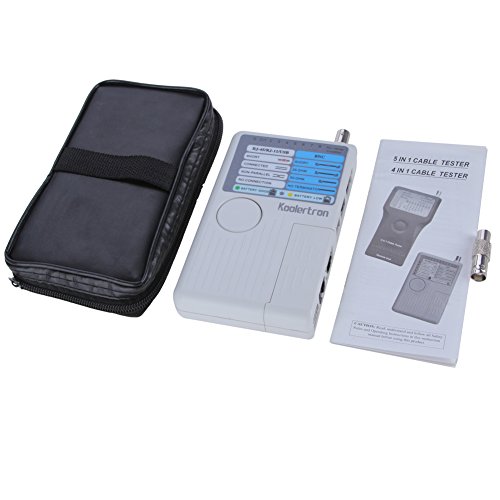

Package:
1 x 4-in-1 Network Cable Tester

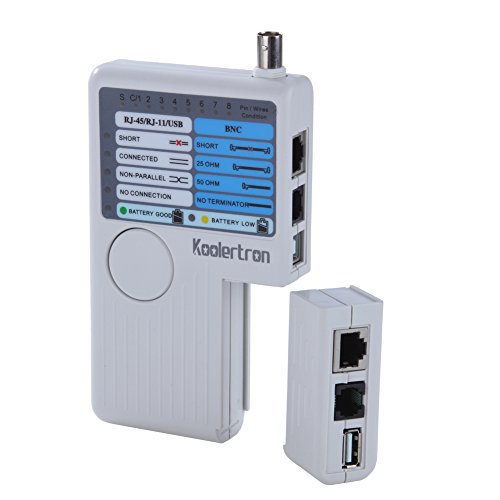

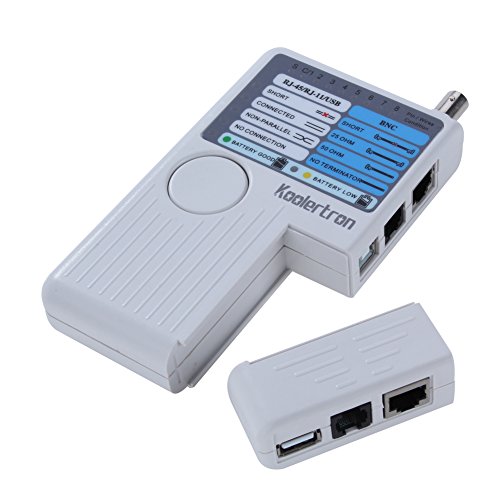

1 x Far End Remote Jack (USB RJ45 RJ11) (Attached to the main unit)
1 x BNC Remote Jack
1 x Carrying bag
1 x English user Manual
特記事項
- テストケーブルの4種類： RJ- 45 、 RJ- 11 、 USBおよびBNC
- Test 4 types of cables: RJ-45, RJ-11, USB and BNC. Test installed wiring or patch cables. Tests shielded (STP) or unshielded (UTP) LAN cables.
- Test shields in USB cables. Can test from 2 remote points. Beeper provides audible annunciation of test results. Remote unit stores in Main unit.
- BNC terminator 25/50 Ohm indications. Straight or crossover indications. LEDs indicate connections and faults of wire and pins. RJ-11/RJ-45 are equipped with 50u gold plating.

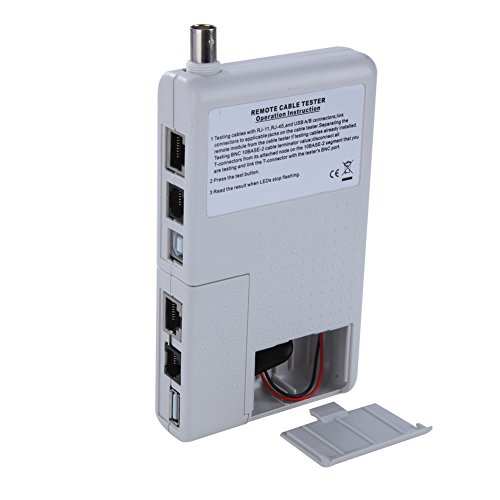

- 300 feet test distance (RJ-45/RJ-11/BNC). Ergonomic portable handheld design. Powered by a 9V Alkaline battery. (Not included) Convenient battery access.
