LightInTheBox Full Complete RFID Door Access Control system Kit set including 800kg Electric Magnetic Strike Lock & 12V 3A Power Supply & Plastic button & Proximity Door Entry keypad [並行輸入品]
- メーカー
- LightInTheBox
- JAN
- 0889148253611
- メーカー品番
- 471538USA
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明

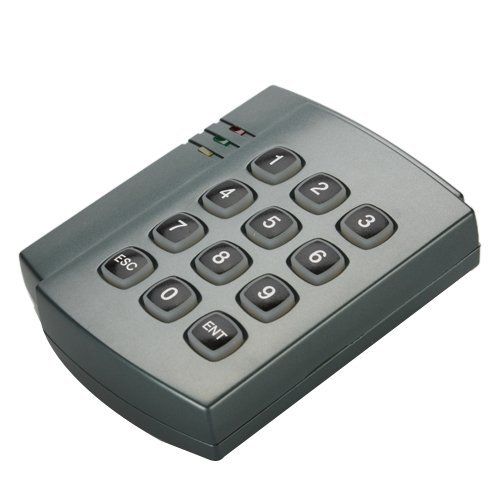

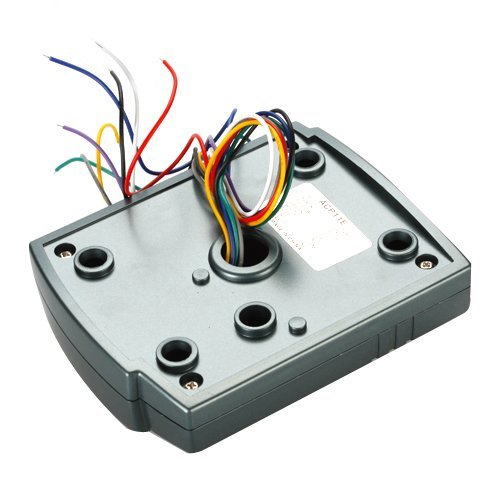

Single door controller (Stand alone controller) with built-in EM card reader module and 3*4 keypad. User management can be achived by localkeypad with 1000 user capacity . The unit works with interface connecting one external wiegand26 (EM) reader
The master card for adding or deleting, can be made by user
Support push to exit button(actived by lower voltage)
Lock open delay time is adjustable at 0 to 25.5 seconds
Dry C type relay output,suitable for all kinds of lock
Directly input card number by keypad
Power requirements:9-15VDC at 100 mA, A linear regulator is recommended
Reader range: 8-15 cm
Frequency: 125KHz
Operation temperature: -20--60
operationg humidity: 5%-95% relative humidity non-condensing
Audio/Visual Indication: Green & Red and Buzzer signal output
Output relay: 5A 250AC; 10A 24DC
INPUT :one external wiegand reader, one push button
Electric Bolt
Face Plate: 205Lx35WX41H(mm)
Strike: 90Lx25Wx2H(mm)
Bolt: 16mmDIA,stainless steel 16mm throw
Voltage: DC12V,Start Current: 900mA,tandby Current: 150mA
Solid Bolt: polishing housing, 800Kg Holding Force
Suitable For: Woodeng Door,Glass Door,Metal Door,Glass Door
Induction Distance:8mm
Special Designed: Tested to 500000 cycles
Face place material:High Aluminum,Carrulous Line Finished

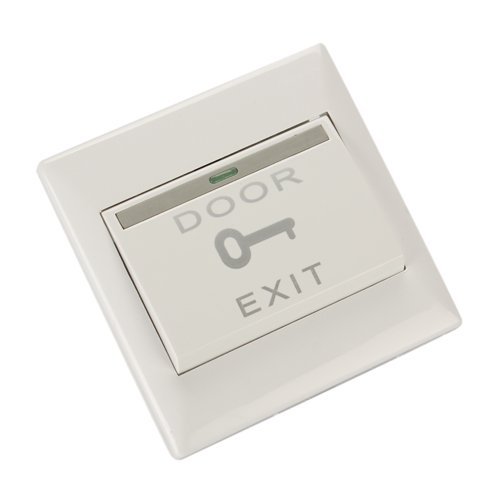

ABS Plastic button
Electrical Characteristics: maximum current : 3A @ 36VDC
Contact output: NO / NC / COM contacts
Application type: suitable for hollow door frame and the use of embedded electrical box

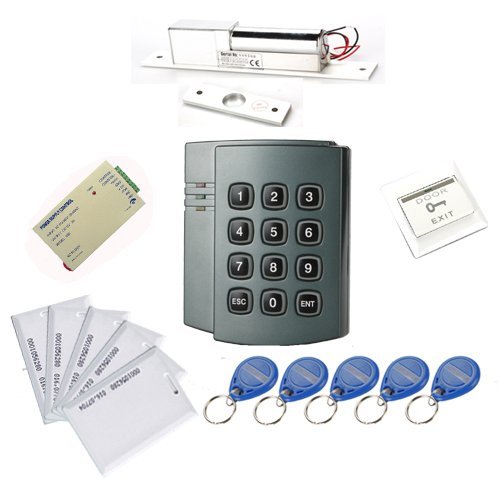

Kits Including
1*Stand Alone Access Controller
1*Electric Bolt
1*ABS Plastic button

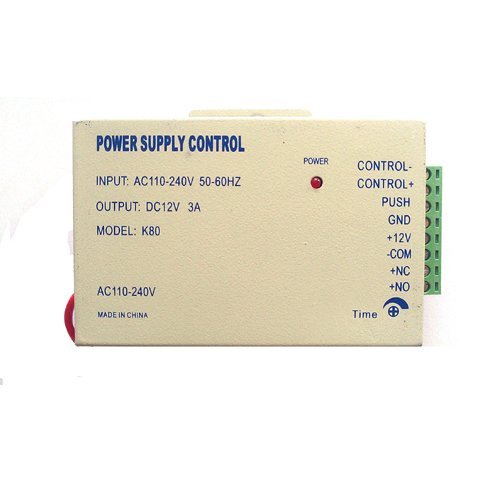

1*Power supply for access controller

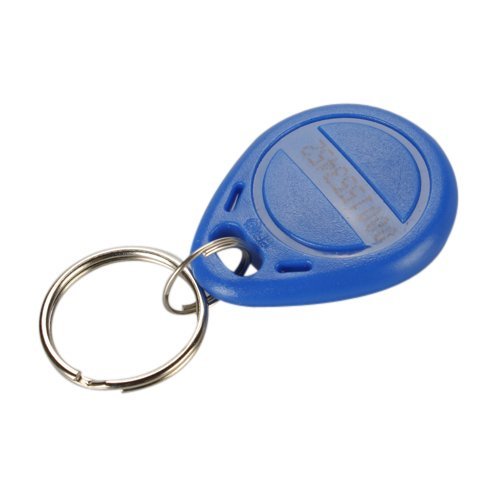

5*Keychain Card

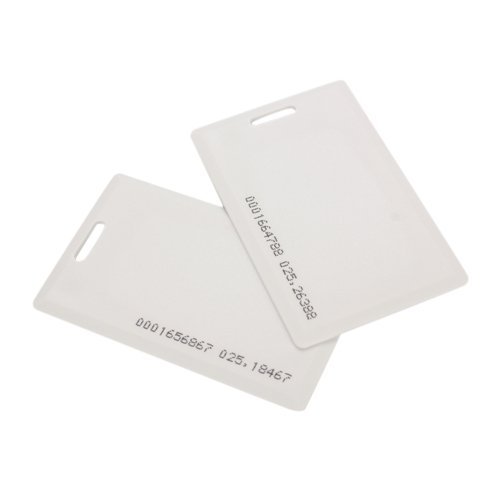

5*EM ID Card
特記事項
- 新品、並行輸入品です。Brand new parallel imports from the US.
- This is a NEW RFID Reader Access Control Keypad, which can update the safety of your home and office. It is perfect for Homes, Office, Factory and many other fields!
- The access controller can provide users with more convenience by connecting to terminals, including the button for opening the door, doorbell, and electric lock that is normally open or closed.
- This product offers a method for controlling access safely and automatically, qualifying it as an ideal equipment for businesses, offices, factories, and communities.
- Connection for external release button(Exit button) Build in RFID reader User capacity: 1000 users (each card only can add one password).Does not need to connect on the computer, it can works alone.
