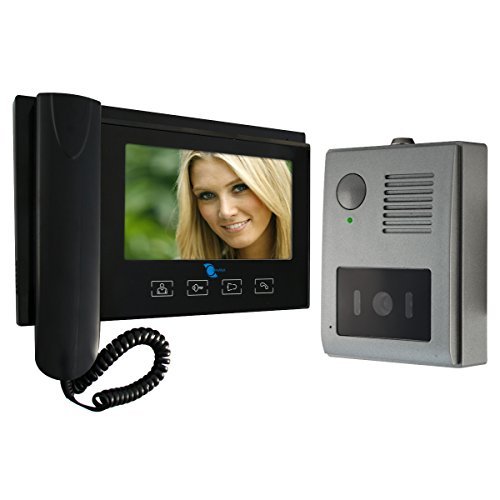

Linemak Video intercom system with 7" LCD screen, 1/3" CMOS Sensor, and 420TVL resolution camera. [並行輸入品]
- メーカー
- LineMak
- ブランド
- Linemak
- JAN
- 0633841289688
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明

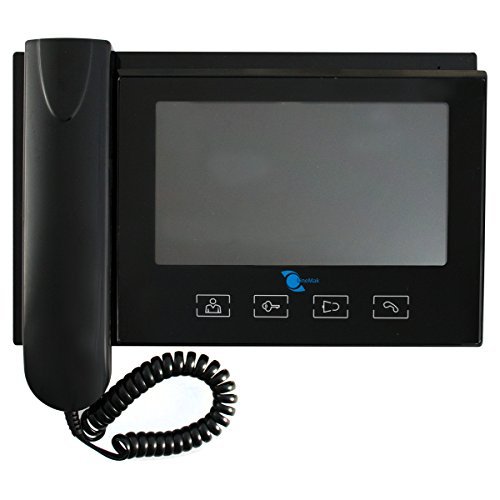

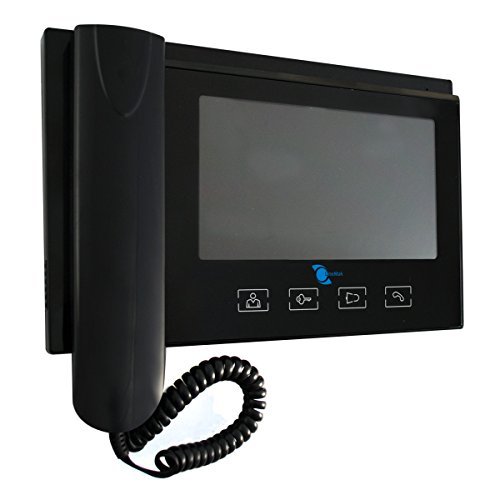

Screen features:
? LCD screen 7" color video intercom.
? New ABS plastic indoor panel and outdoor camera.
? Hands-free talking.
? Enclosed 33ft cable.
? cover against the rain for option.

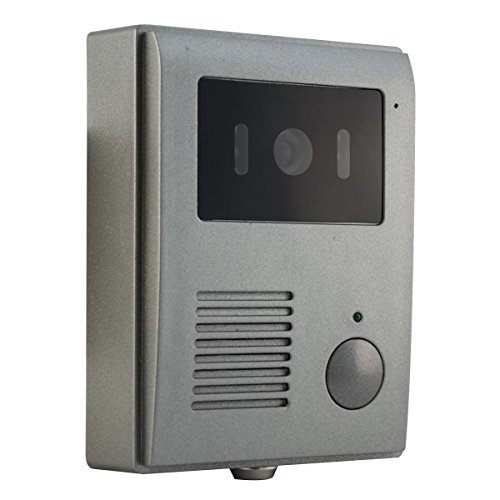

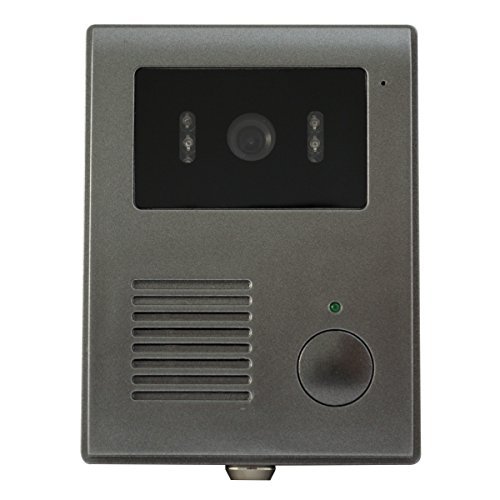

Camera features:
? Camera 3.6mm.
? Microphone.
? Horn of audio.
? Call button.
? Accepts connection of 2 or more monitors to the same camera.
Specifications:
Brand: LineMak
Model: LS-VD702
Monitor: TFT-LCD 7"
Resolution: 200,000 pixels
Brightness: 260cd/m2
Brightness descrimination rate: >8
Video format: NTSC / PAL
Resolution: 420TVL
Sensor: 1/3" pinhole color CMOS
Video format: NTSC / PAL
Video output: 1.0Vp-p, 75ohm
LEDs: 6 LEDs
Minimum illumination: 1.5 Lux@F6.0
Viewing angle: 70°
Operation temperature: Screen and Camera: -20 ~ 50°C / -4?F ~ 122?F
Power supply: Screen: AC 110-250V / DC18V, Camera: DC 12V
Power consumption: Screen: Standby: 130mW / Working: 14W, Camera: 3W
Size: Screen: 0.99(L) * 6.3(H) * 10.24(W), Camera: 1.19(L) * 5.12(H) * 3.55(W) inches
Weight: Screen: 1.21 pounds, Camera: 10.41 ounces
Wiring: 4 wires for connection with outdoor camera, 2 wires for Lock-camera connection
Lock connection: To camera
Mounting: Desktop / Wall-mounted
