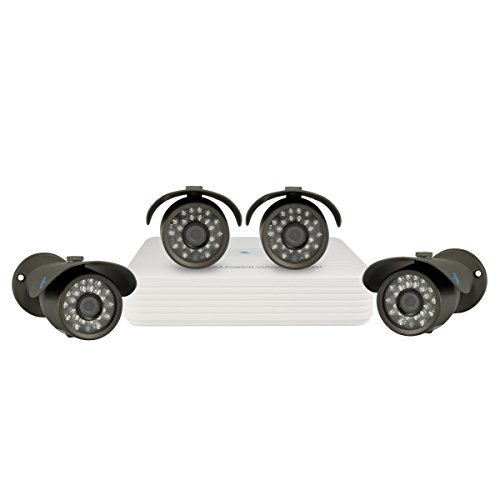

LineMak Kit of 4 bullet cameras, 1/3 SONY CCD Sensor, 700TVL with DVR of 4-channel, H.264/G.711A Compression format, D1 resolution, Pentaplex function, for home security. [並行輸入品]

商品説明

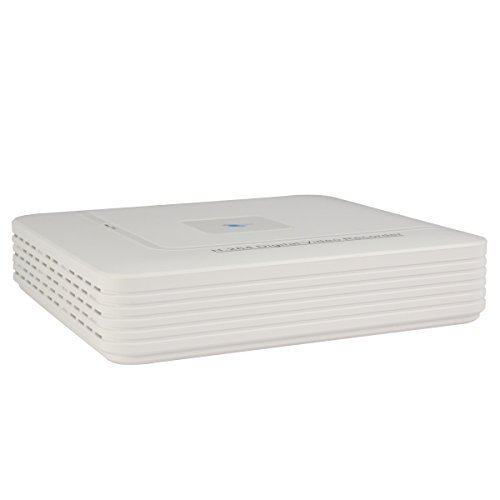

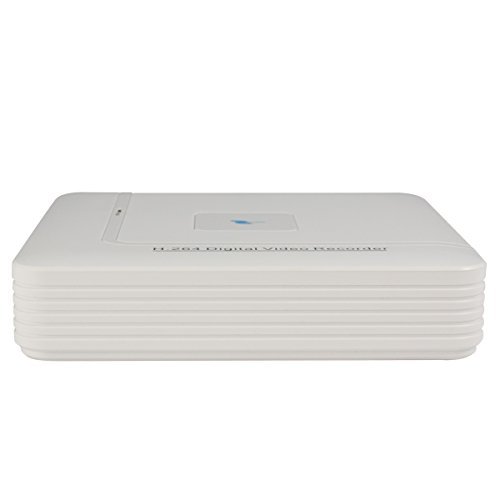

DVR specifications:
Operating system: Embedded Linux
System resources: Pentaplex function: live recording, playback, backup, remote access
Display area: 1/4
Resolution: D1
Compression format: H.264
Frame rate: PAL: 50fps; NTSC: 60fps
Video recording: PAL: 1~25fps; NTSC: 1~30fps
Audio compression: G.711A
Recording mode: Manual, alarm, motion detection and continuous
Search mode: Time-date, alarm, motion detection, exact search
Backup mode: Network download, flash stick, movable HDD, SATA HDD and DVD-RW

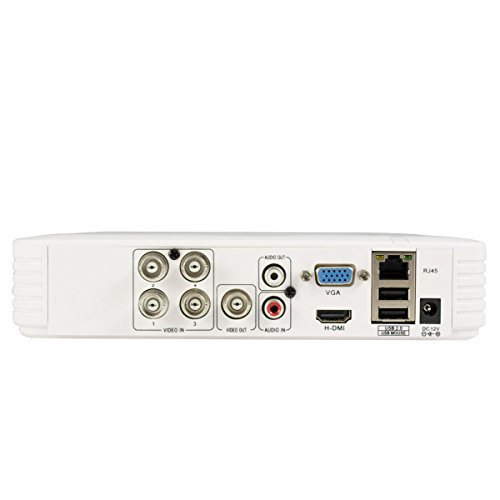

Video input/output: Input: 4-Ch BNC; Output: 1-Ch BNC, 1.Ch VGA and 1-Ch HDMI
Audio input/output: Input: 1-Ch; Output: 1-Ch
PTZ Control: 1 RS485 port
USB Port: 2 2.0 Ports
HDD Port: 1 SATA (Max 3 TB)
Network interface: 1 RJ-45 (10M-100M)
Motion detection zone: Zones: 396 (22/18); Sensitivity: 1-6
Event notificacion: Trigger recording, PTZ movement, tour, alarm, email, snapshot, FTP
Operation temperature: 0?C~55?C, 32?F~131?F
Power supply: 12V/2A
Power consumption: <10W

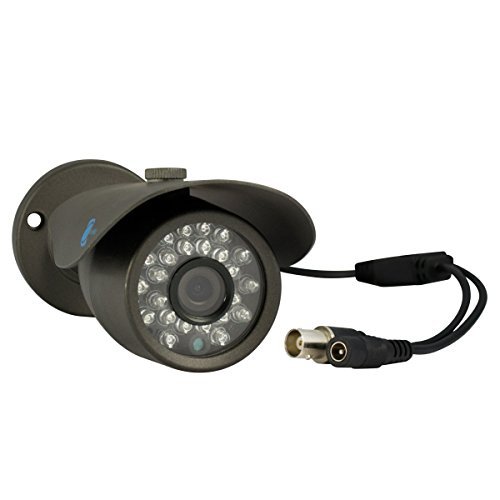

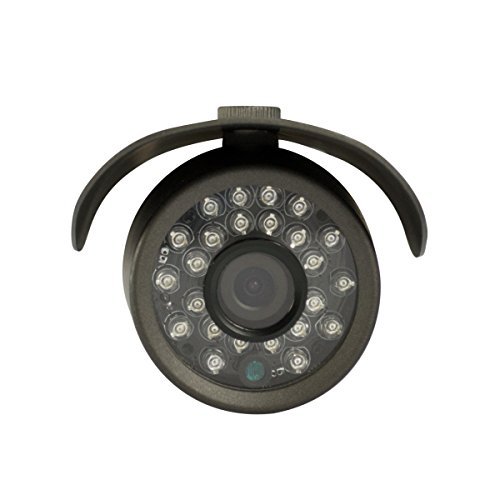

Camera specifications:
Resolution: 700TVL
Sensor: 1/3" SONY 960H Exview CCD Sensor
Video output: 1.0Vp-p, 75Ohm
Lens: Board lens 3.6mm
IR Range: 65ft night vision
LEDs: 24pcs
Minimum illumination: 0 Lux (when LED on)
Viewing angle: 92?
Operation temperature: -10?C~50?C, 14?F~122?F
Power supply: DC12V
Power consumption: 300mA
Electronic shutter speed (AES): 1/50~1/100000
Synchronizing system: Internal
OSD Menu: Yes
S/N Ratio: >50dB

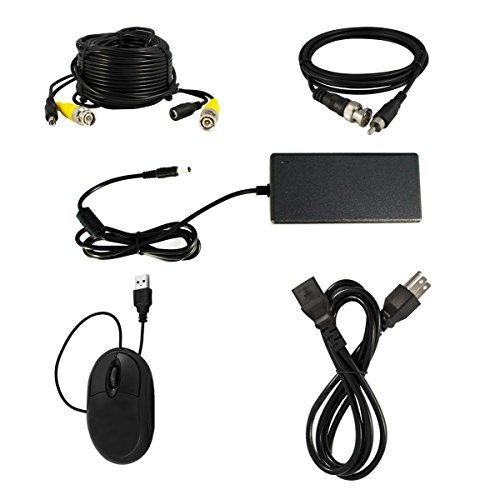

Package Contents:
? 1 Digital Video Recorder.
? 4 Bullet cameras.
? 1 Power supply.
? 4 Video Cable and DC Cable 65ft each.
? 1 5-Way power cable spliter.
? 1 Cable BNC (F) to RCA (M), 5ft.
? 1 Mouse.
? Manual.
? Software.
