LineMak Kit of 4 cameras, 1/3 SONY CCD Sensor, 700TVL with DVR of 4-channel, H.264/G.711A Compression format, D1 resolution, Pentaplex function, for home security. [並行輸入品]
- メーカー
- Linemak
- JAN
- 0633841288629
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
DVR specifications:
Operating system: Embedded Linux
Display area: 1/4
Resolution: D1
Compression format: H.264
Audio compression: G.711A
Recording mode: Manual, alarm, motion detection and continuous
Backup mode: Network download, flash stick, movable HDD, SATA HDD and DVD-RW
Video input/output: Input: 4-Ch BNC; Output: 1-Ch BNC, 1-Ch VGA and 1-Ch HDMI
Audio input/output: Input: 1-Ch; Output: 1-Ch
PTZ Control: 1 RS485 port
USB Port: 2 2.0 Ports
HDD Port: 1 SATA (Max 3 TB)
Network interface: 1 RJ-45 (10M-100M)
Motion detection zone: Zones: 396 (22/18); Sensitivity: 1-6
Operation temperature: 0?C~55?C, 32?F~131?F
Power supply: 12V/2A
Power consumption: <10W

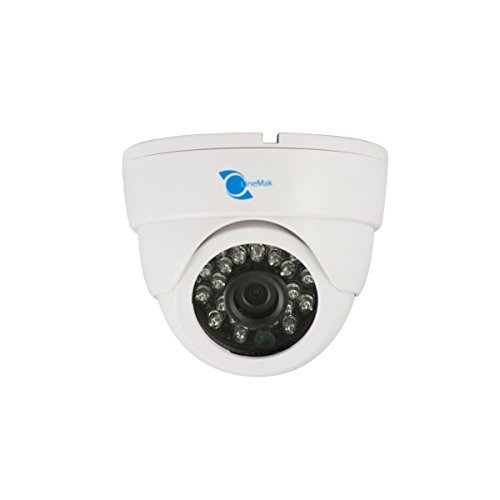

Indoor camera specifications:
Resolution: 700TVL
Sensor: 1/3" SONY 960H Exview CCD Sensor
Lens: Board lens 3.6mm
IR Range: 65ft
LEDs: 24pcs
Viewing angle: 92?
Operation temperature: -10?C~50?C, 14?F~122?F
Power supply: DC12V
Power consumption: 300mA
Electronic shutter speed (AES): 1/50~1/100000
Outdoor camera specifications:
Resolution: 700TVL
Sensor: 1/3" SONY 960H Exview CCD Sensor
Lens: 3.6mm
IR Range: 65ft night vision
LEDs: 24pcs
Viewing angle: 92?
Operation temperature: -10?C~50?C, 14?F~122?F
Power supply: DC12V
Power consumption: 300mA
Electronic shutter speed (AES): 1/50~1/120000
OSD Menu: Yes

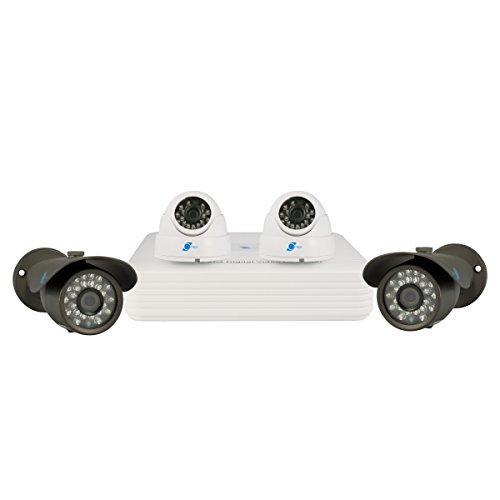

Package Contents:
? 1 Digital Video Recorder.
? 2 Bullet cameras.
? 2 Dome cameras.
? 1 Power supply.
? 4 Video Cable and DC Cable 65ft each.
? 1 5-Way power cable spliter.
? 1 Cable BNC (F) to RCA (M), 5ft.
? 1 Mouse.
? Manual.
? Software.
