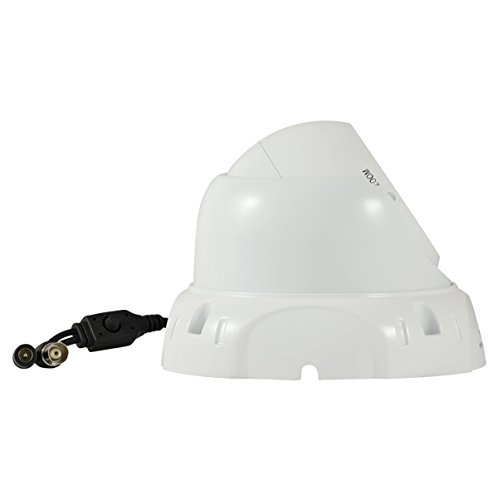

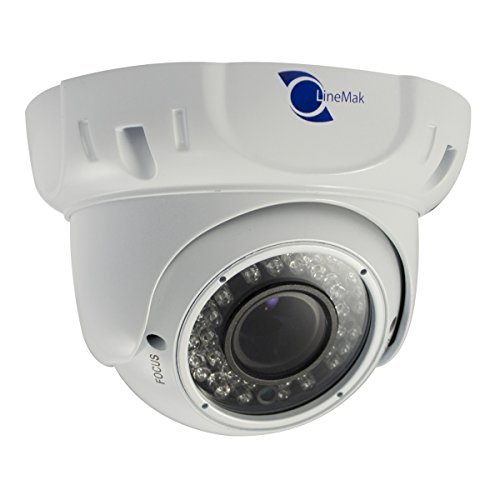

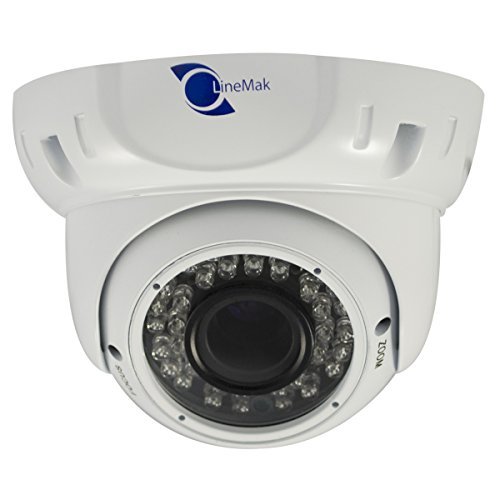

LineMak IR Dome camera, 1/3" Sony CCD Sensor, 700TVL, 2.8mm-12mm varifocal lens, 36 LEDs, 98ft IR night vision, IP66 Weatherproof, OSD Menu, for DVR or surveillance systems. [並行輸入品]
- メーカー
- Linemak
- JAN
- 0633841288568
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
Main features:
? Vandalproof IR Dome Camera.
? 36pcs IR LEDs 5mm each.
? 96ft IR distance.
? 2.8-12mm Varifocal Manual Iris Lens.
? AWB support function: high color reproduction and real image.
? BLC support function: suitable for objects monitoring under backlight environment.
? AES support function: adapt to different monitoring environment.
? AGC support function: adaptive brightness.
? ATR, DWDR, DNR, OSD menu.
Specifications:
Brand: Linemak
Model: LS-CV163H-F
Resolution: 700TVL
Sensor: 1/3" SONY Effio Exview HAD CCD II
Effective pixels: PAL: 752*582; NTSC: 768*494
Video format: PAL / NTSC
Video output: 1.0Vp-p 75ohm
Lens: 2.8mm~12mm varifocal
IR Range: 98ft night vision
LEDs: 36pcs (5mm each)
Zoom: Manual
IR-CUT Filter: Yes
Minimum illumination: 0 Lux (with LED on)
Viewing angle: 25° ~ 115°
Operation temperature: -40°C ~ 70°C; -40°F ~ 158°F
Weatherproof standard: IP66 (waterproof and dustproof)
Power supply: DC 12V
Power consumption: 500mA
Color: White
Size: 3.94(H) * 5.71(D) inches
Weight: 1.38 pounds
Back Light Compensation (BLC): Yes
Auto White Balance (AWB): Yes
Electronic shutter speed (AES): PAL: 1/50~1/100,000 sec; NTSC: 1/60~1/100,000sec
Auto Gain Control (AGC): Yes
Digital Noise Reduction (DNR): Yes (2D-DNR)
Wide Dynamic Range (WDR): Yes
Adaptive Tone Reproduction (ATR): Yes
High Light Compensation (HLC): Yes
Scanning system: 2:1 Interlace
Synchronizing system: Internal
S/N Ratio: >48dB
Gamma correction: 0.45
OSD Menu: Yes
