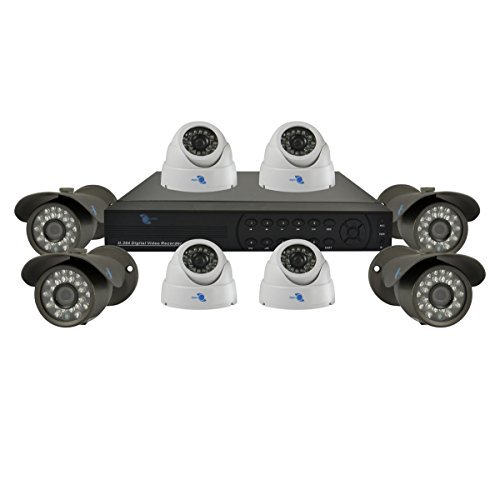

LineMak 8 camera kit, 1/3.5" HDIS CMOS Sensor, 900TVL with DVR of 8-channel, H.264/G.711A Compression format, VGA/BNC/HDMI output, D1/CIF resolution, for home security. [並行輸入品]

商品説明

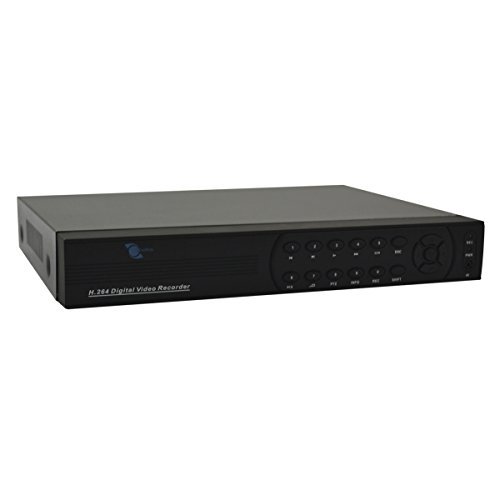

DVR specifications:
Operating system: Embedded Linux
Display area: 1/4/9
Resolution: D1/CIF/HD1
Compression format: H.264
Audio compression: G.711A
Recording mode: Manual, alarm, motion detection and timing
Backup mode: Network backup, USB portable HDD, USB inprint, SATA inprint

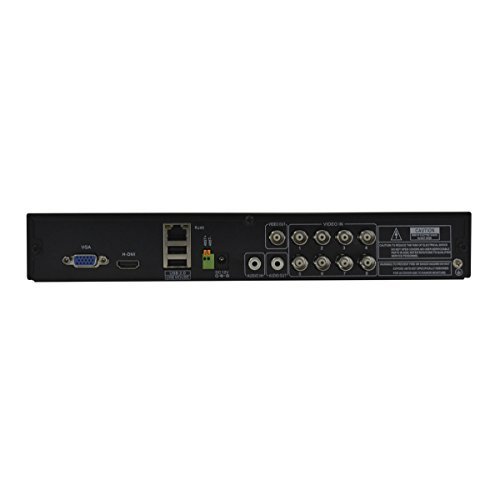

Video input/output: Input: 8-Ch BNC; Output: 1-Ch BNC, 1-Ch VGA and 1-Ch HDMI
Audio input/output: Input: 1-Ch; Output: 1-Ch
PTZ Control: 1 RS485 and 1 RS232 port
USB Port: 2 2.0 Ports
HDD Port: 1 SATA (Max 2TB)
Network interface: 1 RJ-45 (10M-100M)
Motion detection zone: Zones: 192 (16/12)
Operation temperature: 0?C~55?C, 32?F~131?F
Power supply: 12V/2A
Power consumption: <15W

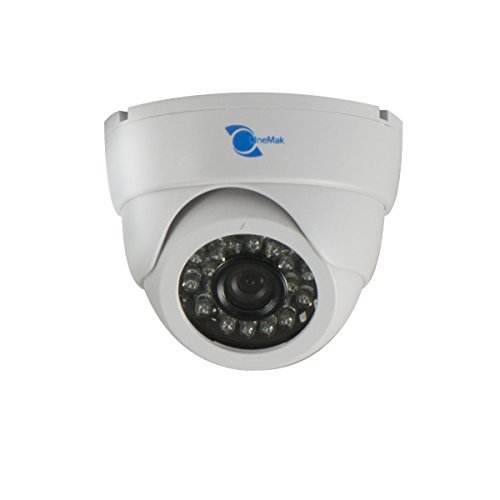

Indoor camera specifications:
Resolution: 900TVL
Sensor: 1/3.5" HDIS Color CMOS Sensor
Lens: Board lens 3.6mm
IR Range: 65ft
LEDs: 24pcs
Viewing angle: 95?
Operation temperature: -10?C~50?C, 14?F~122?F
Power supply: DC12V
Power consumption: 300mA
Electronic shutter speed (AES): 1/50~1/100000
S/N Ratio: >50dB

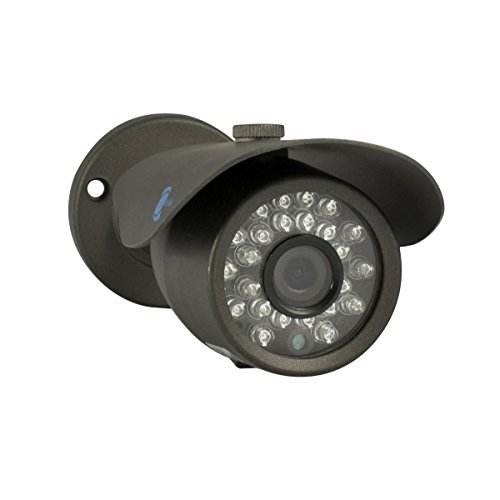

Outdoor camera specifications:
Resolution: 900TVL
Sensor: 1/3.5" HDIS Color CMOS
Lens: 3.6mm
IR Range: 65ft night vision
LEDs: 24pcs
Viewing angle: 95?
Operation temperature: -20?C~50?C, -4?F~122?F
Weatherproof standard: IP66 (dustproof and waterproof)
Power supply: DC12V/1V
Power consumption: 500mA
Auto White Balance (AWB): Yes
Electronic shutter speed (AES): 1/50~1/120000

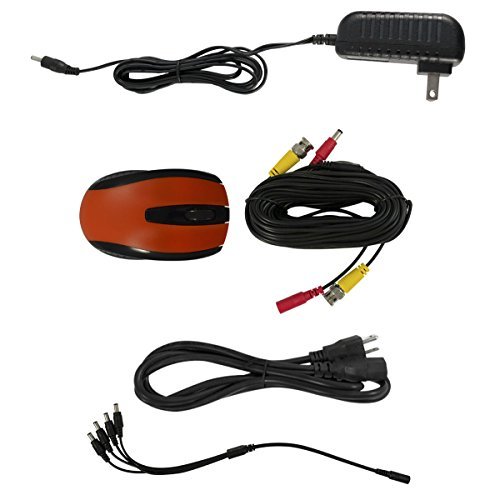

Package Contents:
? 1 Digital Video Recorder.
? 2 Bullet cameras.
? 2 Dome cameras.
? 1 Power supply.
? 4 Video Cable and DC Cable 65ft each.
? 1 5-Way power cable spliter.
? 1 Cable BNC (F) to RCA (M), 5ft.
? 1 Mouse.
? Manual.
? Software.
