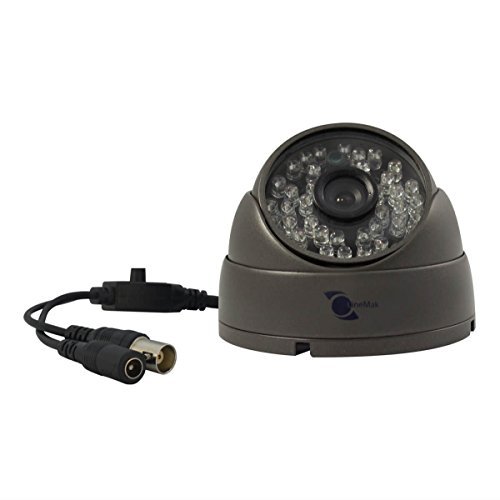

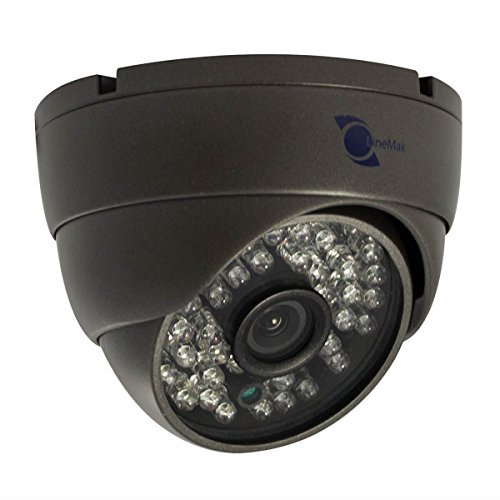

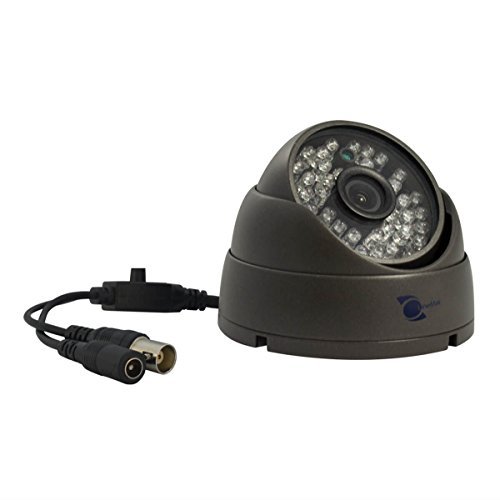

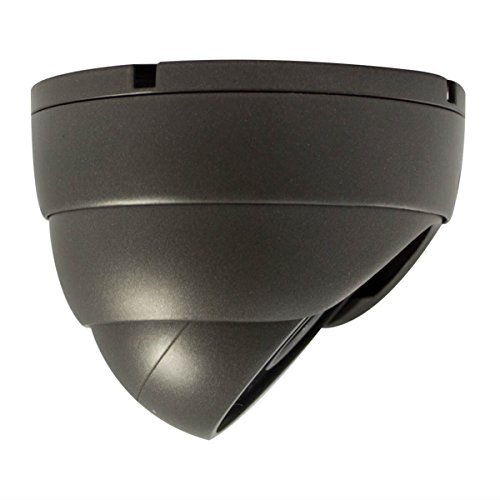

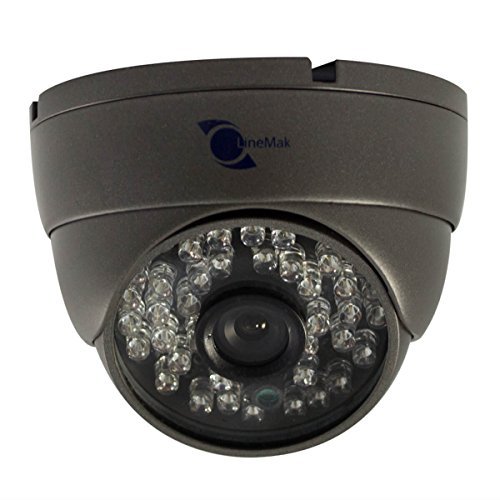

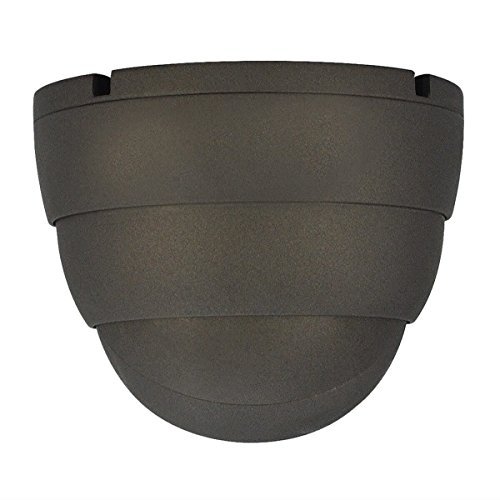

LineMak Dome camera, 1/3" Sony CCD Sensor, 700TVL, 6mm lens, 131ft IR distance, 48 LEDs, OSD menu, for DVR or surveillance systems. [並行輸入品]
- メーカー
- Linemak
- JAN
- 0633841288575
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
Main features:
? IR dome camera.

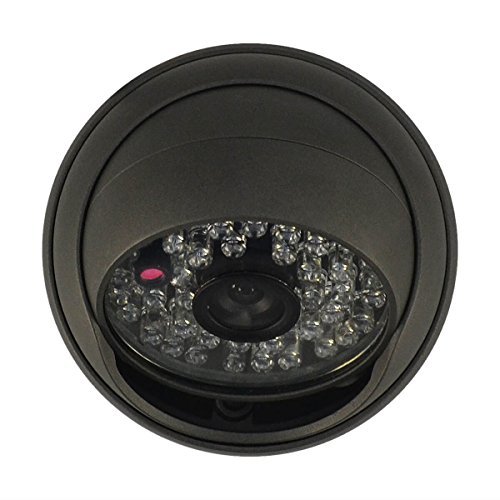

? 48pcs LEDs 5mm each.
? 131ft IR distance.
? 6mm Lens.
? AWB support function: high color reproduction and real image.
? BLC support function: suitable for objects monitoring under backlight environment.
? AES support function: adapt to different monitoring environment.
? AGC support function: adaptive brightness.

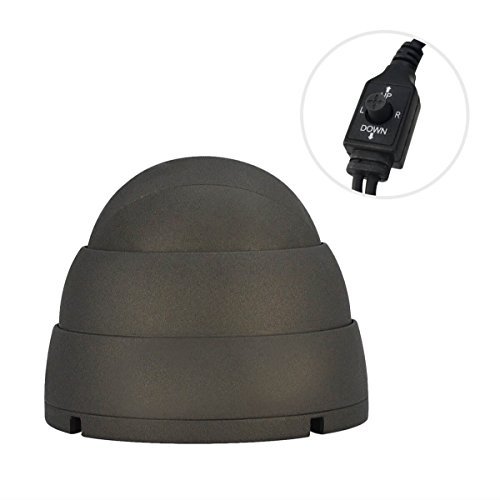

? ATR, WDR, DNR and OSD menu.
Specifications:
Brand: LineMak
Model: LS-CV164H
Resolution: 700TVL
Sensor: 1/3" SONY Effio-E CCD
Effective pixels: PAL: 752*582, NTSC: 768*494
Video format: PAL / NTSC

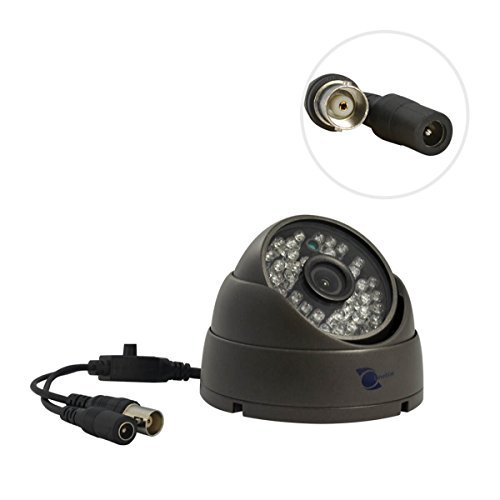

Video output: 1.0Vp-p, 75ohms
Lens: 6mm
IR Range: 131ft nigt vision
LEDs: 48pcs (5mm each)
IR-CUT Filter: Yes
Minimum illumination: 0 Lux (with LEDs on)
Viewing angle: 53°
Operation temperature: -20°C ~ 50°C, -4°F ~ 122°F
Weatherproof standar: IP66 (dustproof and waterproof)
Power supply: DC 12V
Power consumption: 500mA
Color: Dark grey
Size: 3.15(H) * 3.54(D) inches
Weight: 10.23 ounces
Back Light Compensation (BLC): Yes
Auto White Balance (AWB): Yes
Electronic shutter speed (AES): PAL: 1/50~1/100,000s, NTSC: 1/60~1/100,000s
Auto Gain Control (AGC): Yes
Digital Noise Reduction (DNR): Yes
Adaptive Tone Reproduction (ATR): Yes
Scanning system: 2:1 Interlace
Synchronizing system: Internal
S/N Ratio: >48dB
Gamma correction: >0.45
