LineMak 4 Camera kit, 1/4" CMOS Sensor, 3.6mm lens, 30 LEDs, 33ft~49ft IR, IR-CUT Filter with 4-Ch NVR, H.264 Compression format, 720P/960P resolution, ONVIF, for home security. [並行輸入品]

商品説明

NVR specifications:
Operating system: Embedded Linux
Display area: 1/4 Resolution: 960P/720P
Compression format: H.264
Display quality: 720P (1280*720)
Frame rate: PAL: 25fps, NTSC: 30fps
Recording mode: Alarm, auto, motion detection, manual
Local playback: 4-Ch 960P
Record storage: Internet, HDD
Backup mode: U disk, HDD, Mobile, Internet

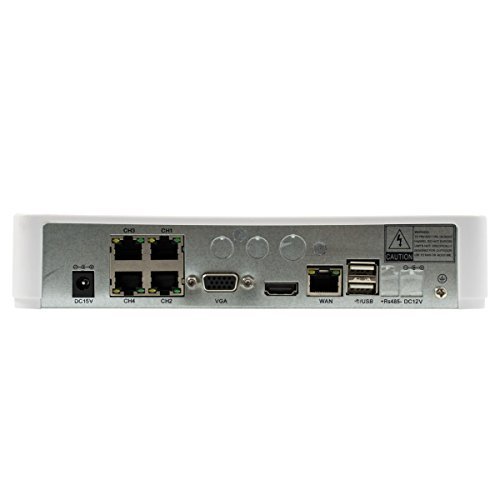

Video input/output: Input: 4-Ch*1.0mp, 1.3mp and 2.0mp IP cameras; Output: 1-Ch HDMI and 1-Ch VGA
PTZ Control: 1 RS485 port
USB Port: 2 USB 2.0
HDD Port: 1 SATA HDDs (max. 4TB)
Wireless port: 3G
Network interface: 5 RJ45 10M/100M ports (Data and power transmission)
Motion detection zone: Zones: 396 (22*18)
Operation temperature: -10?C~55?C, 14?F~131?F
Working humidity: 90%
Power supply: DC 15V/4A
Power consumption: <20W

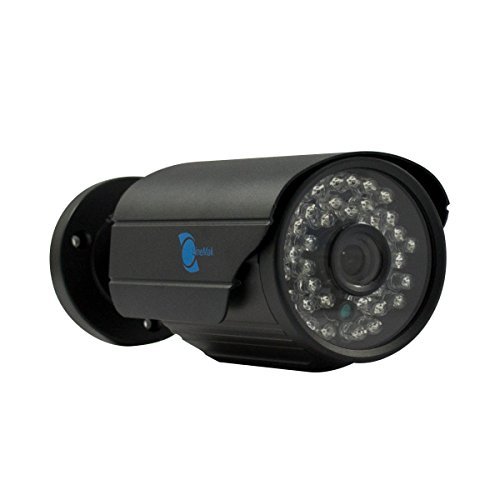

IP bullet specifications:
Resolution: 1.3Mp
Sensor: 1/3" CMOS
Effective pixels: 1280*960
Compression format: H.264
Display quality: 1280*960 / 1280*720 / 640*360
Frame rate: 25fps
Bit rate: 64Kbp~4Mbps continuously-adjustable
Streams: Dual
Network interface: 1 RJ-45 10M/100M adaptive Ethernet interface
Network protocol: RTSP / UPnP / PPPoE / DDNS / ONVIF
Web Browser: IE
Lens: 3.6mm
IR Range: 33-49ft

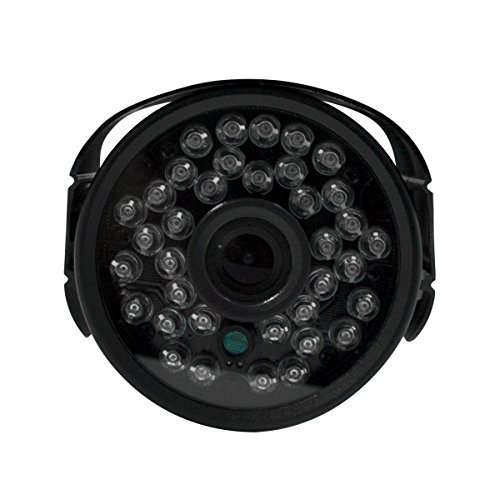

LEDs: 30pcs
IR-CUT Filter: Yes
Minimum illumination: 0Lux (with LED on)
Viewing angle: 92°
Operation temperature: -10?C~55?C, 14?F~131?F
Working humidity: 10%~90%
Power supply: 12V/600mA
Power consumption: 6W
Electronic shutter speed (AES): 1/25s~1/10000s
S/N Ratio: >39db

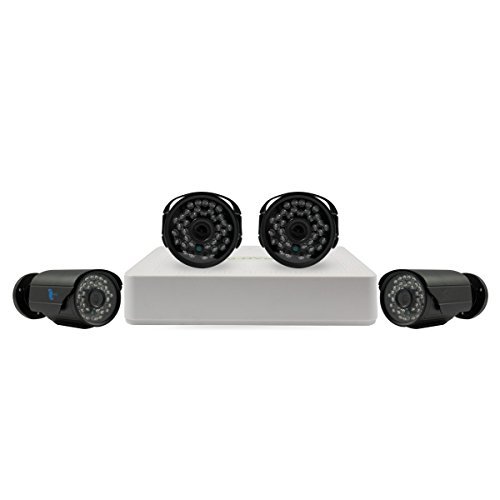

Package includes:
- 1 Digital video recorder (LS-N9104).
- 4 IP bullet cameras (LS-JA6013E).

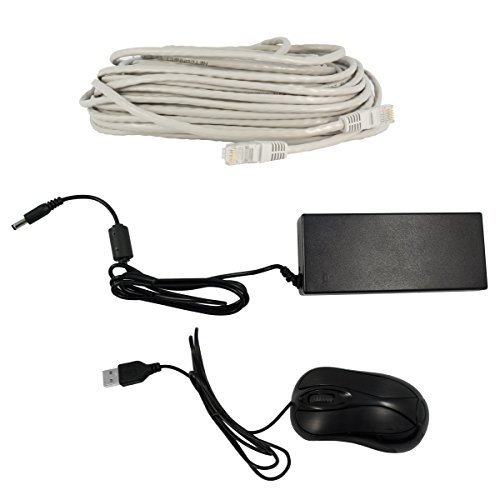

- 1 Power supply.
- 4 Patch cord (data cable) 56ft.
- 1 Mouse.
- Manual.
- Software.
