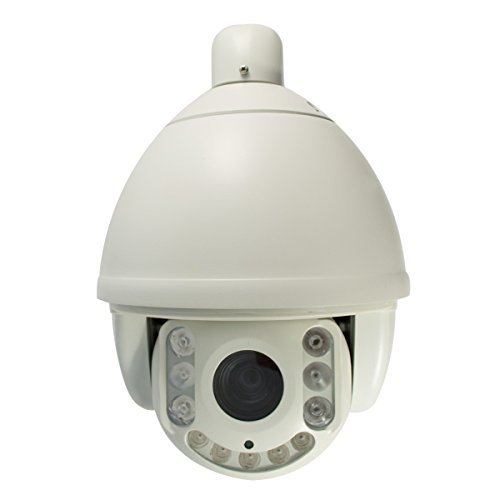

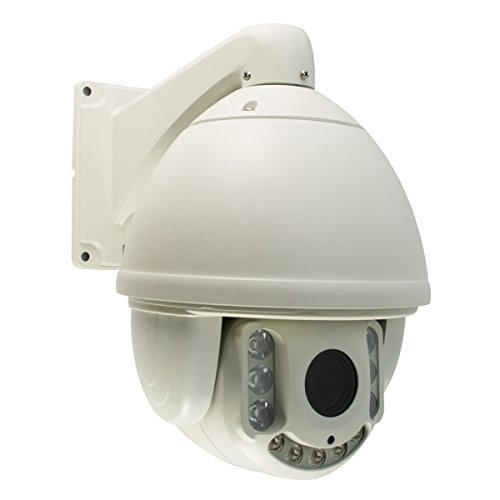

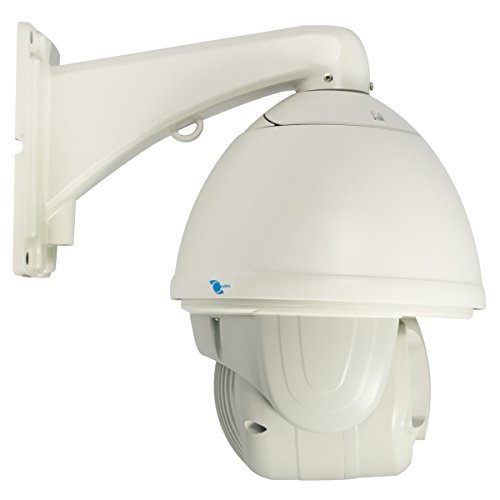

Linemak IP PTZ Dome Camera, 1/3 CMOS Sensor, 2.0Mp, 4.7~84.6mm lens, 12x Digital/18x Optical Zoom, H.264, IR-CUT Filter, for NVR or surveillance recorders. [並行輸入品]

商品説明

Main features:
? 1/3" 2.0 megapixel progressive CMOS sensor.
? 18x optical zoom, 12x digital zoom, a built-in 4.70mm~84.6mm lens.
? IR distance 492ft.
? Power consumption is variable depending the zoom factor.
? Dome ID, baud rate, communication protocol can be set via the controller.
? Supported Protocols: Pelco-D/P; others on special request.
? 7" double layer metal body construction, waterproof IP 66.

Specifications:
Brand: LineMak
Model: LS-IPCH671X2
Resolution: 1080p
Sensor: 1/3" Aptina CMOS
Effective pixels: 1920*1080
Compression format: H.264/MPEG4
Network interface: RJ-45 (10M/100M)
Network protocol: TCP, UDP, IP, HTTP, FTP, SMTP, DHCP, DNS, ARP, ICMP, POP3, NTP
Lens: 4.7mm(Wide) ~ 84.6mm(Tele)
IR Range: 492ft night vision
Zoom: 18x optical / 12x digital
IR-CUT Filter: Yes
Minimum illumination: 0.05 Lux/F1.6~0Lux
Viewing angle: 3° ~ 70°
PTZ Control: RS485
Communication protocol: Pelco-D, Pelco-P
Baud rate: 1200/2400/4800/9600bps
Bit rate: 500Kbps ~ 7Mbps
Dwell preset: 2-60s interval
Preset points: 220
Preset speed: 01-64 levels
Scan: User programmable
Scan speed: 1-9 speed setting
Guard tours: 3 groups
Guard points: Max.16 points, dwell time user selectable
Home pos time: 0-60mins available
Operation temperature: Indoor: 0°~40°, 32?F ~ 104?; Outdoor: -40°~60°, -40?F ~ 140?F
Weatherproof standard: IP66
Working humidity: 95%
Power supply: DC 12V/5A
Power consumption: 20W
Lightning protection: Transient voltage 3000V
Color: White
Size: 13.39(L) * 16.54(H) * 10.44(W) inches
Weight: 10.04 pounds
S/N Ratio: >50dB
