Vibration Sensor Module of Linker Kit for pcDuino [並行輸入品]

商品説明

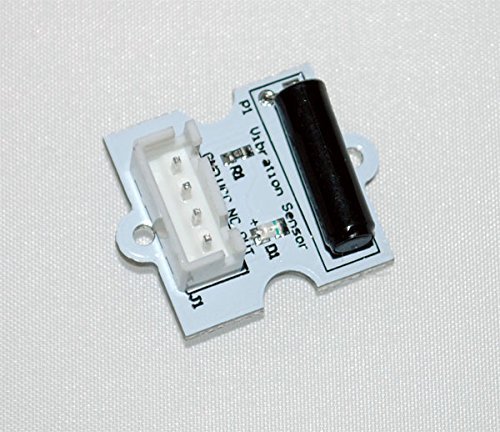

Spring based vibration sensor module of Linker Kit uses a spring based sensor. When there is vibration, it will output a digital signal.
Spring Based Vibration Sensor
SW-18010P series are spring type, no directional vibration sensor trigger switch, any angle can trigger.
Switch is open circuit OFF-state , when it is static, when external force to touch and corresponding vibration, or movement speed achieve adequate (partial) centrifugal force, conductive pick feet will produce instant conductivity is instant ON-state, when external force disappear, switch back to open circuit OFF-state.
Switch have the identification P at the bottom, for completely airtight;
In the normal,switch life can reach 20,0000 cycles lifespan
This series Switches have trigger high sensitivity
Electrical characteristics
Voltage: <12V
Current: <20mA
Conductive time: 2ms
Closed resistance: <30 ohm
Open resistance: >10M ohm
Mechanical characteristics
Temperature range: Storage: -40°C to 80°C, Operating: -40°C to 80°C Pull force of terminal: 500gf for 1 minute Humidity: 95% RH, 40°C for 96 hours Operating lifespan: 100,000 cycles
