Humidity and Temperature Sensor - SHT15 Breakout [並行輸入品]

商品説明

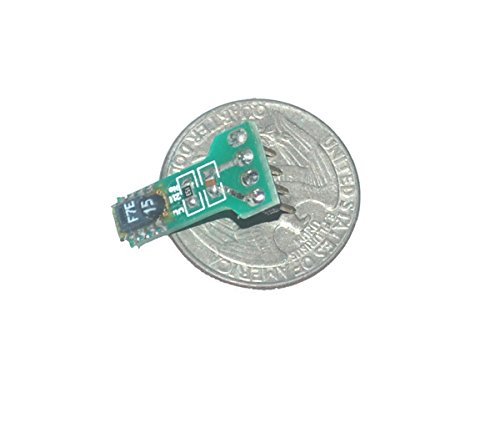

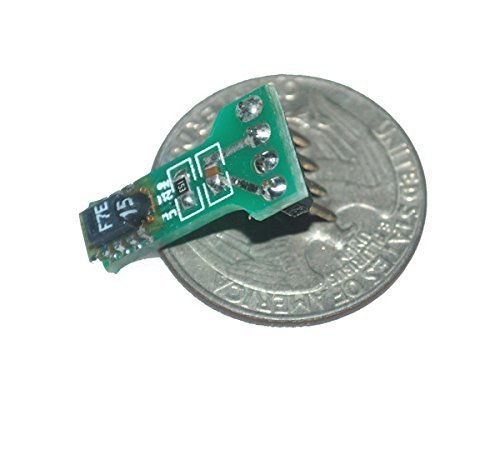

This is a simple breakout board for the SHT15 humidity sensor from Sensirion.
The SHT15 digital humidity and temperature sensor is fully calibrated and offers high precision and excellent long-term stability at low cost.
The digital CMOSens Technology integrates two sensors and readout circuitry on one single chip. These sensors are really impressive!
Very sensitive and straight forward to use. Board comes assembled and tested with the SHT15.
Features:
2 factory calibrated sensors for relative
humidity & temperature
Digital 2-wire interface
Precise dewpoint calculation possible
Measurement range: 0-100% RH
Absolute RH accuracy: +/- 2% RH (10...90% RH)
Repeatability RH: +/- 0.1% RH
Temp. accuracy: +/- 0.3°C @ 25°C
Fast response time < 4 sec.
Low power consumption (typ. 30 ?W)
Low cost
High precision sensor at low cost
Leading CMOSens Technology for superior long-term stability
Applications:
Precise data logging
Transmitters
Automation & process control
Building control and HVAC
Test & Measurement
Medical
