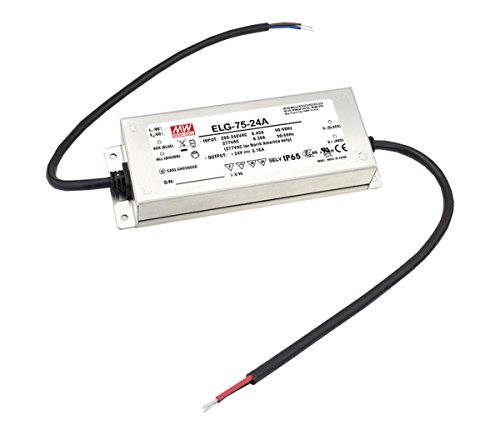

[PowerNex] Mean Well ELG-75-24A 24V 3.15A 75.6W Single Output Switching LED Power Supply with PFC [並行輸入品]

商品説明

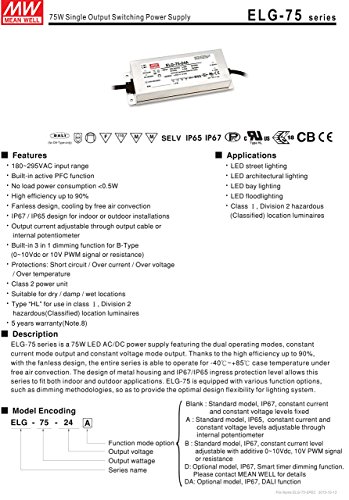

5 years warranty. Features
Constant voltage+constant current
BE-Type: IP67 rated. 3 in 1 dimming function and 15V/400mA auxiliary output (ELG-150 only)
Optional CCC models available
5 years warrantymodes
Universal AC input (up to 305VAC) / Full range
High efficiency up to 91%
No load / Standby power consumption <0.5W
Meet 6KV surge immunity level (IEC61000-4-5)
Class 2 power unit
Type HL LED Driver for use in Class I, Division 2 hazardous location luminaires
Suitable for dry / damp / wet locations
Suitable for LED lighting and street lighting applications
Protections: Short circuit / Over current / Over voltage / Over temp.
Multiple models for choice:
A-Type: IP65 rated. Output voltage and constant current level can be adjusted through internal potentiometer

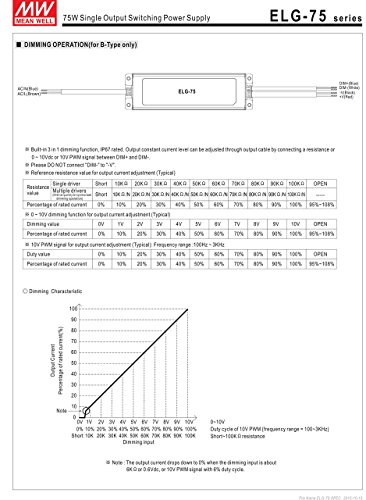

B-Type: IP67 rated. Constant current level adjustable through output cable with built-in 3 in 1 dimming function (0~10VDC, PWM signal, or resistance)
Blank-Type: IP67 rated. Cable for I/O connection
D2-Type: IP67 rated. Smart timer dimming function*, contact MEAN WELL for details
DA-Type: IP67 rated. DALI control technology
