15KW 30-80 KHz High Frequency Induction Heater Furnace LH-15A Promotion [並行輸入品]

商品説明

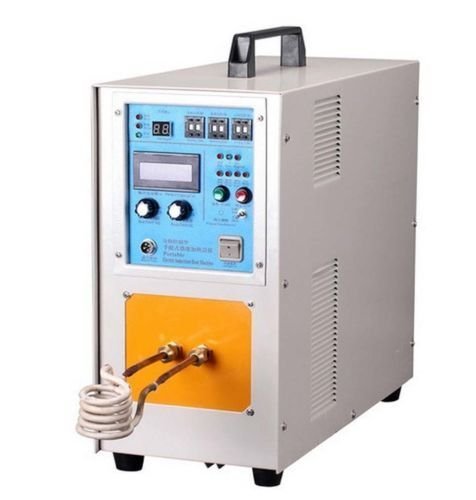

15KW 30-80KHz High Frequency Induction Heater Furnace LH-15A

Description and Advantages:
1. Adopts the latest MOSPET, IGBT power units and frequency conversion control techniques with high efficiency, low energy consumption and higher output power
2. With constant current and constant power control function to greatly optimize the heating process of metals, realize efficient and fast heating, and fully exert the superiority of the products
3. Power consumption is half of traditional electron tube high frequency induction heating equipments under same conditions
4. With 100% load design, can work in 24 hours without stop. Infrared temperature detector can be equipped to realize the automatic control of temperature, improve heating quality and simplify manual operation
5. With heating-insulating-cooling three stages function setting, the heating and insulating time required can be get to accommodate to the batched and repeated heating situations
6. With multiple status display of overflow, overvoltage, low water, phase failure and load malfunction, providing higher reliability and sustainability
7. Select power supply according to the power and frequency. The higher the frequency, the shallower the heating depth, and the lower the frequency, the better the diathermancy.

Parameters:
Model: LH-15A
Work Power: Single Phase; 220 V/ 50 Hz or 110 V/ 60 Hz
Output Power: 15 KW
Fluctuating Frequency: 30 - 80 KHz
Output Current: 200 - 600 A
Timing: 1 - 99s
Flow Rate of Cooling Water:0.06 - 0.12 Mpa 7.5 L/Min
Water Temp. Protection Point:40℃
Net Weight:25 kg
Dimension:550 x 220 x 470 mm

We will arrange the shipment in 1-5 working days and it takes another 5-7 working days to reach you.
