3 Axis E-Cut USB MACH3 Motion Control Card CNC Interface Breakout Driver Board [並行輸入品]

商品説明

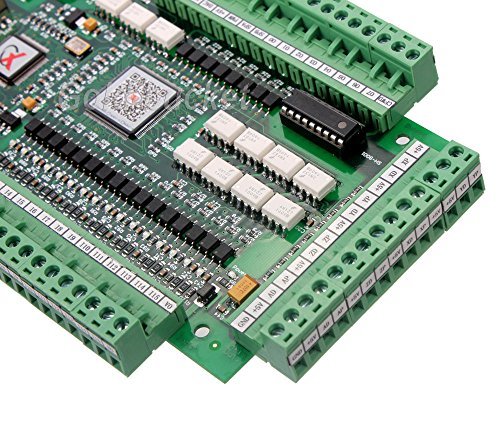

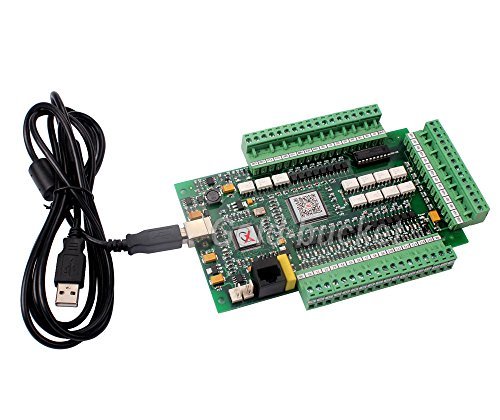

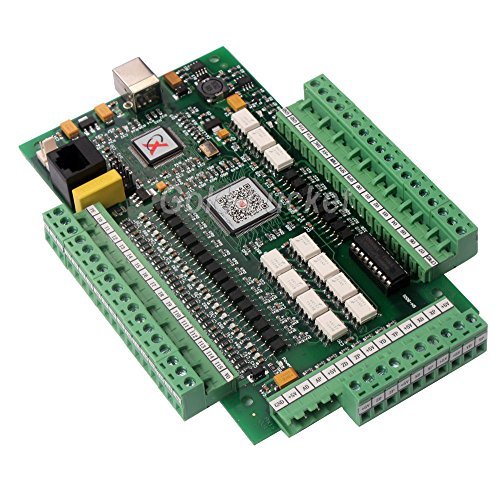

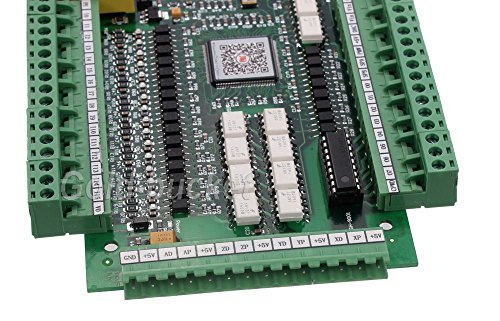

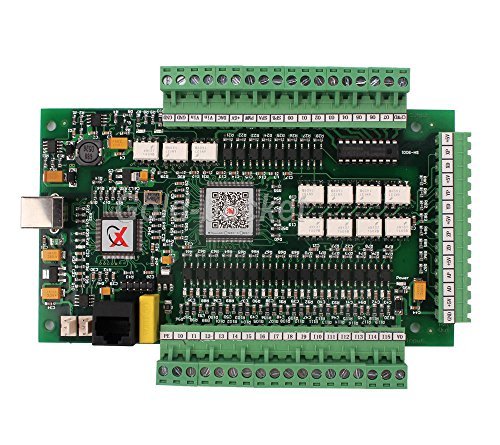

3 Axis E-Cut USB MACH3 Motion Control Card CNC Interface Breakout Driver Board
Description:
1. Supports all Mach3 versions,including the Mach3R3.042.040 version.
2.Supporting Windows series,no need to install any USB drivers and plug.
3. Full support for USB hot-swappable,the card is Monitoring USB connection status at any time.Under the operation of Mach3, it can be reconnect automatically after disconnect.
4. Supports 3 axis linkage,including point to point move.
5. Supporting auto tool zero,electronic handwheel and software limit,return difference eliminating.
6. 120M working frequency,Maximum step-pulse frequency is 1MHz,Perfectly drive servo and stepper motor in three ways: pulse/direction,CW/CCW,AB quadrature output.
7. Status indicator LED can be usefulto show the USB connection,and working status by flashing.
8. 16 general-purpose inputs,PNP or NPN input status can be configured in Mach3.
9. 8 electronic switch outputs.Darlington open-drain output.
10. Measures real-time spindle speed(Support the Hall element and quadrature encoder speed masurement,etc.)and spindle speed can be observed in March3 to perfectly support the application of spindle.Perfectly support the lathe spindle applications and other occasions,whitch requires precise spindle speed.

We will arrange the shipment in 1-5 working days and it takes another 5-7 working days to reach you.
