Resiliometer Concrete Rebound Test Schmidt Swiss Hammer HT-225

商品説明

H&H 75mm 10-60MPa Resiliometer Concrete Rebound Test Schmidt Swiss Hammer HT-225
HT-225 Concrete Test Hammer
Model: HT-225 Name: Concrete Test Hammer
Explanation
Consistent withGB/T9138-1988 standards and JJG817-93 statutes and JGJ/T23-2001 technical regulations. HT-225 Concrete Test Hammer generally applied to building components, bridges and all kinds of concrete components (panels, beams, columns, bridges) strength.
Features
1) Center guide rod using imported materials, high precision, wear-resistant;
2) Use of super-hard aluminum shell to avoid on-site work injury apparatus, to extend the service life;
3) Pointer slider with external spring ring structure, both convenient for the friction adjustment,and ensures that the pointer shaft and pointer slider friction uniform, to ensure the accuracy of the instrument.Peer-products is relatively high accuracy, quality and cheap, long service life.
Technical Data
Measuring ranges: 10-60MPa
Impact energy: 2.207J?0.225Kgf.m)
Spring extension: 75mm
The static friction of pointer slider: 0.5N?0.8N
Radius of spherical tip : 25mm?1mm
The average rebound values on steel anvil: 80?2
Housing dimensions: ?54*278mm
Weight: ?1Kg

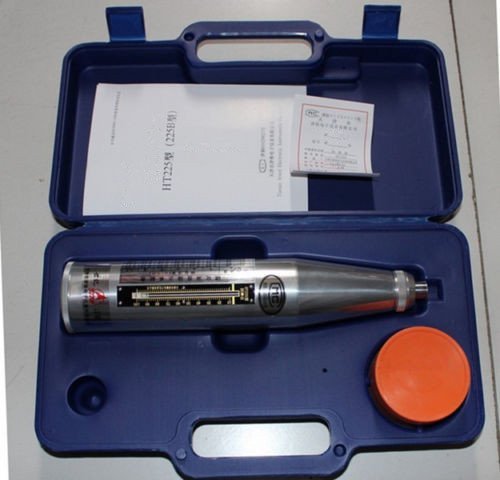

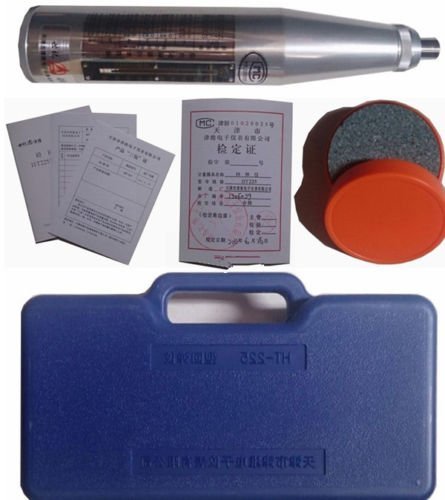

Incidental Items with Instrument
1. HT-225 Concrete Test Hammer
2. Desiccant
3. Millstone
4. Technical Information with Instrument
5. Manual of HT-225 Concrete Test Hammer
6. Rugged carrying case with key


We will arrange the shipment in 2-5 working days and it takes another 3-7 working days to reach you.
