AFA-II Automatic Electric film coating machine vacuum suction cup Film Applicator Coater adjustable speed, adjustable stroke length (220V)
- メーカー
- MXBAOHENG
- JAN
- 5990015668799
- メーカー品番
- HQ-765
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
The product usually takes 7--13 business days to arrive to your hand after your order is confirmed
Automatic film coating device is a necessary device for preparing samples of various types of products, such as paint, varnish, cosmetics, glue and so on.
All the consistency and reproducibility can be obtained on the photo, steel plate, plastic film and glass and other substrates.
Film with 10 adjustable speed and adjustable stroke length, with a quick reset system.
Technical Datas

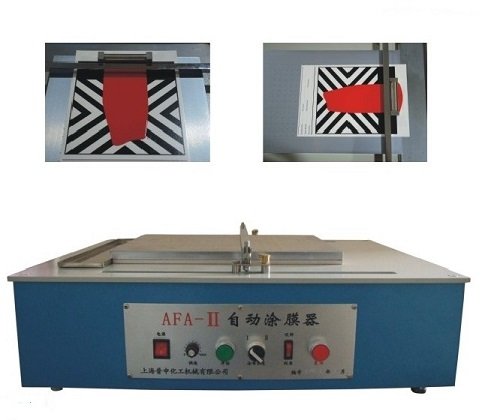

Model: AFA-II
Voltage: 220V AC 50Hz
Power: 350W
Internal vacuum pump: Gardner Denver Thomas VET 6
Max Vacuum suction:- 850 mbar
Vacuum platform:Aluminum platform, hole type
Vacuum size:300 * 200mm
Speed range:1cm to 10cm/s, 10
Coating length:230mm / 285mm
Coating width:200mm
Outline dimension:705 * 505 * 270mm
Weight:65 KG
特記事項
- Very suitable for testing paint, varnish, cosmetics, glue and so on.
- 10 lateral rates: 1-10cm per second.
- Smooth aluminum surface, a lot better than the glass, so that the repeatability is higher.
- Can be used in conjunction with various types of film.
- Adjustable stroke carriage with end stop device.
