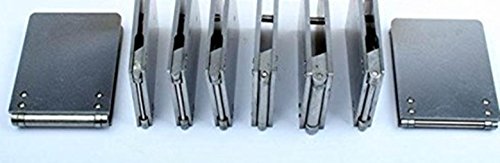

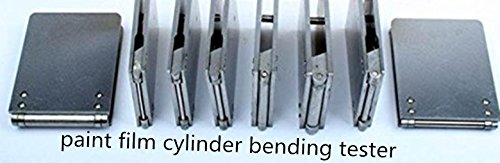

QTY-10A paint film cylinder bending tester cylinder test instrument paint film

商品説明

The product usually takes 7--13 business days to arrive to your hand after your order is confirmed

QTY-10A technical parameters: the implementation of standards: GB/T6742-86
ISO1519-73
ASIMD522
DIN53152
Test film or shaft rod size: diameter of 2, 3, 4, 5,, 6, 8, 10mm
The test plate substrate thickness: not more than 0.3mm (tinplate)
Detailed introduction:
Purpose: To evaluate the flexibility of the paint film without damaging the paint film with the base material under the specified standard conditions.
Characteristics of the test technology: in the standard, the test plate in 1-3 seconds around the shaft rod bent 180 degrees after the film is not caused by cracking the smallest shaft rod diameter
Dimensions: 200 x 100 x 130
Test film or shaft rod size: 3, 4, 5, 6, 8,, 10, 12, 16,,, 20,, 25, 32,,,,,,,,,,, 2, 18
The plate bottom material: not more than 1.0mm (polishing plate, tin plate)
To evaluate the flexibility of the paint film with the ability to deform and not to damage the paint film under the specified standard.
Characteristics of the test technique: in the standard, the minimum shaft rod diameter of the paint film is not caused by the crack of the film after the test plate is bent about 180 degrees in 1-3 seconds.
