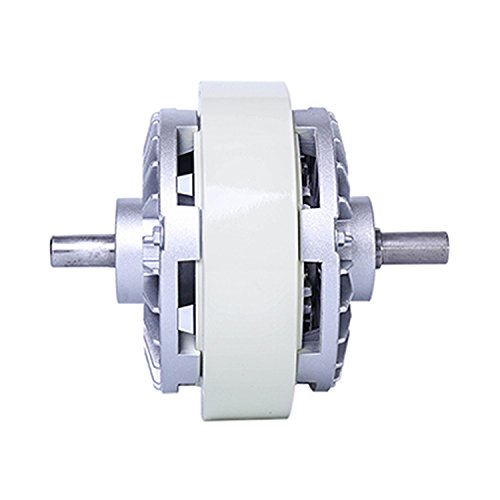

Machinery Parts 50N.m two shafts electro magnetic powder clutch brake re-reeling machine tension control brake
- メーカー
- MXBAOHENG
- JAN
- 5990015670747
- メーカー品番
- HQ-960
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
The product usually takes 7--13 business days to arrive to your hand after your order is confirmed

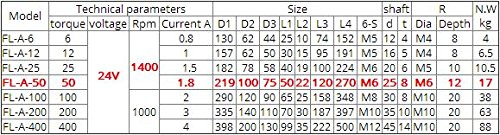

Product Description
Model: FL-A-50
Torque: 50N.m
Voltage: 24V
Rpm: 1400
Current: 1.8A
特記事項
- 1, the excitation current - torque characteristic Exciting current and torque is linear relationship between the exciting current can be controlled by adjusting the size of torque.
- 2, Speed - torque characteristics Independent of torque and speed to keep constant. (Magnetizing current is constant, the allowed range of slip speed change of the torque from the impact of high and low speed) static torque and dynamic moment there is no difference.
- 3, the load characteristics Magnetic slip clutch allows power, cooling conditions in a certain time, is constant. Selection of the actual use, the practical power to be allowed to slip slip-power or less. Use of high speed, the need to reduce the torque to use.
- Magnetic clutch to their location of choice, in the slip under the premise of power matching, magnetic clutch on the high-level, you can choose a smaller size. If not match, it should be placed in institutions low end (the middle or rear). Work to reduce the torque to increase speed no difference.
