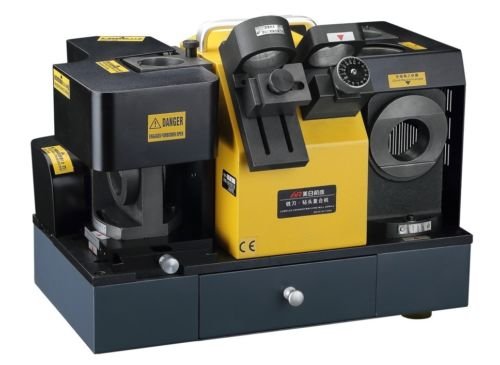

Drill End Mill Grinder Sharpener Grindering Machine MR-F6

商品説明

Features
1. Complex grinder machine mill & drill.
2. One machine has double function, with easy operation and saving cost.
3. With CBN or SDC (alternative), long service life.
4. The milling cutter can grind 2-flute, 3-flute, 4-flute, 6-flute and so on.
5. This product has China national patent.
6. Drill bit can sharpen the drill bit front angle, back angle and front angle, you also can control the centre spot at random instend of centre drill, easy vent scraps, relax drill.
7. Complex MR-13D and MR-X3. / Complex MR-26D and MR-X5.

Specifications
Model End Mill Drill
Range ? 12-? 30 mm ? 12(8)-? 30(32) mm
Point Angle 0｡ ~ 5｡ 90｡ ~ 135｡
Power AC 220 V, 50 Hz; AC 110 V, 60 Hz; 250 W
Motor 4000 rpm
Dimension 45 x 34 x 38 cm
Weight 48 kg
Standard Equipment
Drill side grinding wheels: CBN (for HSS)
Mill side grinding wheel: CBN(for HSS)
One collet chuck for drill
Two collet chucks for end mill:
2, 4 flutes ｡ﾁ 1 piece
3, 6 flutes ｡ﾁ 1 piece
Optional Equipment Drill side grinding wheels: SD (for Carbide)
Mill side grinding wheel: SD (for Carbide)
One piece collet chuck(for drill): ? 31 - ? 32

The voltage could be 110 V/60 Hz or 220 (or 380) V/50 Hz (optional). By default, we will ship the product with voltage and frequency standard in the recipient's country. If you need something different, please send us a message.

We will arrange the shipment in 1-5 working days and it takes another 5-7 working days to reach you.
