AC 220V/50HZ or 110v 60hz 120W 15-27# Wire Stripping Twisting Peeling Machine Stripper

商品説明

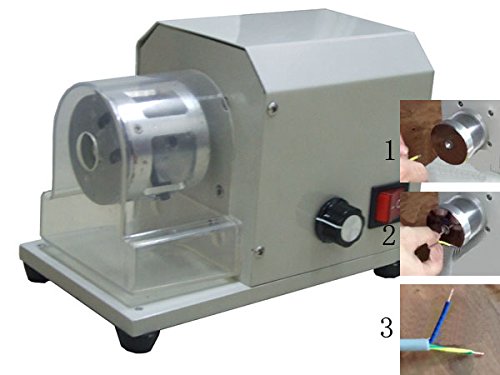

Hanheng Instrument Co.? H&H AC 220V/50HZ or 110V 60hz 120W 15-27# Wire Stripping Twisting Peeling Machine Stripper
Product Description
The machine Used for stripping and twisting wires work by micro-motors.
Body lighter, machine small size, easy to carry, sound small, fast speed.
Apply to a single multi-strand plastic copper wire strippers and twisting, once completed.
Technical Parameters:
Input Voltage: AC 220V/50HZ
Motor power: 120W
Weight: 7kg
Processing Range: 1-4mm
Strip length: 2-20mm
copper diameter: 0.1-1.5mm2(AWG15-27)
Dimension: 210L ? 125W ? 155Hmm

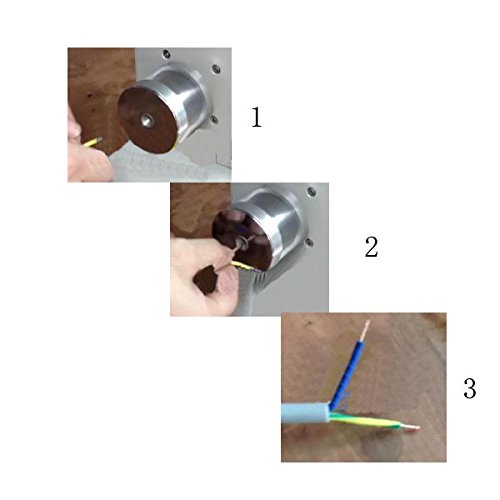

How to use:
Should first peel twist you better cut the length of the line.
According to the size of your wire strippers diameter, matching well with the die head, and then a good tune you need the length of twisted wire strippers for stripping head.
To open the machine's power, so that the machine running.
The wire and die quickly inserted into the machine, the same time, to quickly pulled out. Done in one step to complete the strippers twisting function.

we will send the product to you as soon as possible
If you have any questions , please feel free to contact us
