Manual PCB Screen Press Precise Stencil Solder Printing Machine High Precision
- メーカー
- MXBAOHENG
- JAN
- 6929451281346
- メーカー品番
- HQ-452
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
The product usually takes 7--13 business days to arrive to your hand after your order is confirmed
Parameter:

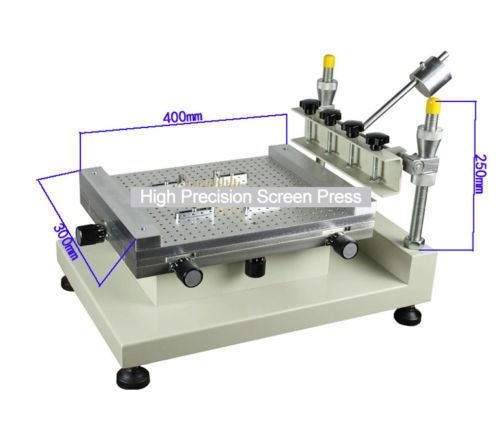

Size for workbench: 300 * 400mm
Max. printing size: 250 * 400mm
Max. sreen frame dimension: 370 * 470mm
Thickness for printed matter: 0-80mm
Vertical and horizontal adjustment volume of workbench: 10mm
Height of printing platform: 220mm
Repeatability precision: ?0.01mm
Location mode: shape or benchmark hole
Boundary dimension: 540 * 370 * 350mm
N.W.: 25KG
G.W.: 35KG
Printing speed: manual control
特記事項

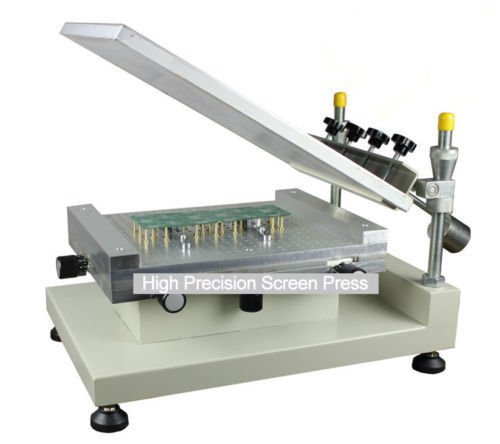

- This machine is mainly designed for requirements of single or dounle-sided circuit board solder cream or red glue printing. The working platform is processed by cellular positioning hole with high-quality aluminum and its pedestal is welded by thick steel plate with steadiness and durability.Its characteriastics are as follows:

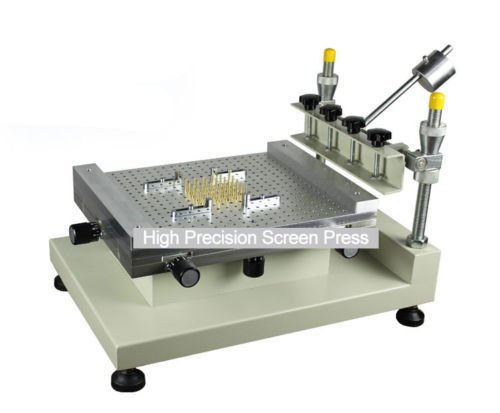

- Circuit board adopts positioning needle, fixed rod and fixed plate for positioning, which can ensure convenient positioning and accuracy of repeated operation.

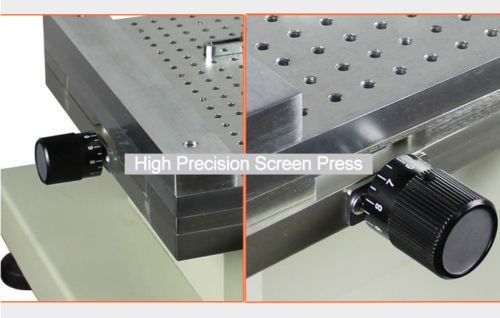

- Makeready mode is made through stencil's movement and combined with fine adjustment and correction of X, Y axis in printing platform, which is convenient and quick.
- Stencil stent uses spiral bearing and height can be adjusted up and down, which is convenient to control PCB's thickness and volume or printing cream.

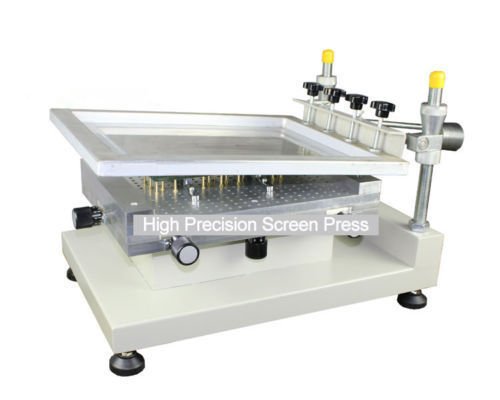

- Printing plates are fixed by four rotary knobs whit platen and it is quick and strong.
