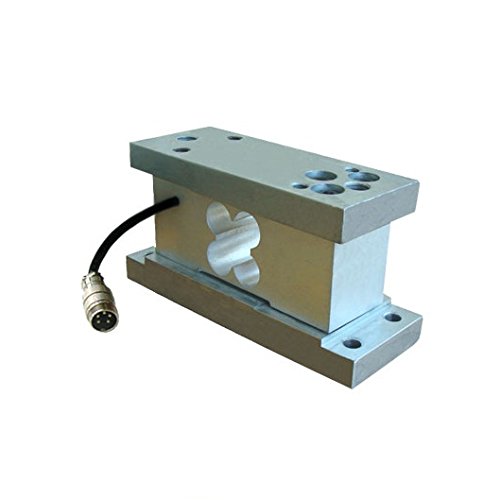

Strain - type tension sensor for Automatic tension controller tension pick-up Rated Load 30KgF
- メーカー
- MXBAOHENG
- JAN
- 5990015670693
- メーカー品番
- MXBAOHENG
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
The product usually takes 7--13 business days to arrive to your hand after your order is confirmed
Product Description
Model: STSA-030
Rated load: 30KgF
Load direction: Up or Down
Installation: Base, suspension
Connecting cable: 4-core shielded cable(3-6m)
Working power: 5V/20mA
Environment: 0-40?

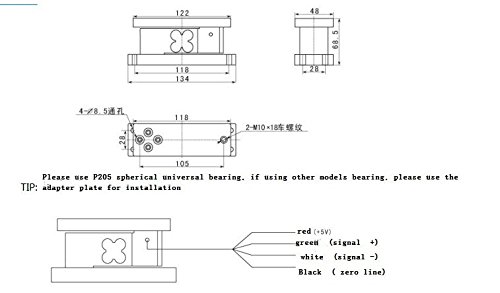

Size: 134mm* 48mm* 78mm
Net weight: 1.8kg
特記事項
- * Low temperature drift, good linearity, high stability, durable.
- * Operating voltage: DC 5V
- * Full-scale output: 180mV
- * Bearing: spherical universal bearing
