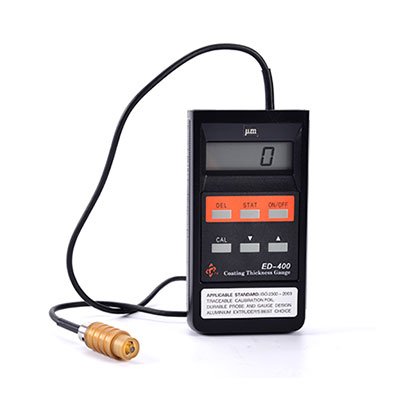

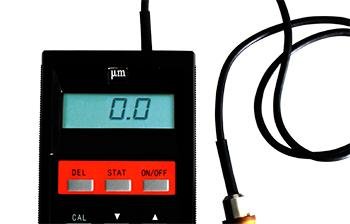

ED400 Coating Thickness Gauge Measuring Range 0-500?m
- メーカー
- MXBAOHENG
- JAN
- 5990015670792
- メーカー品番
- MXBAOHENG
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
The product usually takes 7--13 business days to arrive to your hand after your order is confirmed
Features
Wide Range: Measuring range from 0 to 500?m.
High Accuracy: Accuracy is up to 2%.
High Resolution: Resolution is up to 0.1?m.

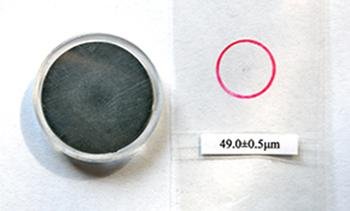

Simple Calibration: Only two calibration points, 0 and 50?m, which can ensure the accuracy within the whole measuring range.
Less Substrate Sensitive: Less variation when the substrate material is changed from aluminum to different substrates such as aluminum alloys, copper and brass. The error is smaller than 2?m.
Better Reliability
Better Stability: With advanced temperature compensation technology, the measuring value drifts very slightly with temperature. The calibration cycle is longer.

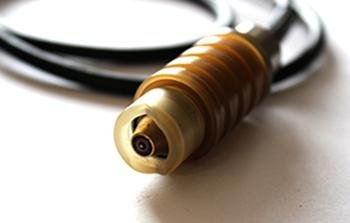

Long Life of Probe Core
Technical Parameters
Testing Range: 0-500?m
Testing Accuracy: 0-50?m: ??m? 50-500?m: ?%
Resolution: 0-50?m: 0.1?m 50?m -500?m: 1?m 0-500?m: 1?m ( optional)
Operating Temperature: 5-45?
Dimension: 150*80*30mm
Weight: 280g
特記事項
- The gauge is used to measure the thickness of the insulating coating on nonmagnetic metals. It is mainly used to measure the anodic oxide coating on aluminum alloy profiles, aluminum composite panel, and other aluminum workpieces.
- It can be used to measure the thickness of the insulating coating thickness on other non-ferrous metals, also can be used on paper and plastic foil.
- It is suitable for quick non-destructive coating thickness measurement for production, sales and engineering. It is used for production inspection, acceptance inspection and quality inspection.
