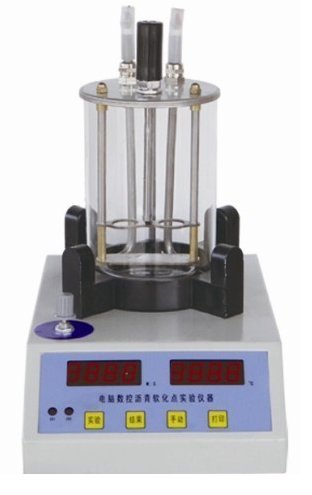

CNC Asphalt Softening Point Tester SYD-2806D Ring and Ball Apparatus
- メーカー
- MXBAOHENG
- JAN
- 7608911572369
- メーカー品番
- MXBAOHENG
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
The product usually takes 7--13 business days to arrive to your hand after your order is confirmed
Features:
1. The new look, more convenient operation.
2. Manual testing results, automatically calculate the average.
Technical Datas
Model: SYD-2806F
Temperature range: -5-125 ?
Test range: 5?90?
Heating rate: (5?.5) ?/min
Heating modes: heating rate plus fuzzy logic algorithm with PID control, magnetic stirring
Detection method: Manual detection
Ball Weight: 3.5g?.05g
Ball diameter: 9.53mm
Ball sink: 25.4mm
Ring: JTG E52-2011 standard procedure
Timing range: 0-99minutes 99seconds
Temperature measurement accuracy: 0.1 ?
Implementation of the standards: GB / T4505, ASTMD36, T0606-2011
Ambient temperature: 5 ~ 40 ?
Environmental humidity: ?85%
Power: AC220V?0%, 50Hz
Power: 1KW
Dimensions: 340?30?40mm
Weight: 4.5KG
特記事項
- 1.Temperature controlled by the instrument, without human error.
- 2. The external temperature probe, reflecting the sensitivity to temperature.
- 3. The speed using PID plus fuzzy logic algorithms control, linear warming.
- 4. A magnetic stirring device, test the temperature more uniform.
