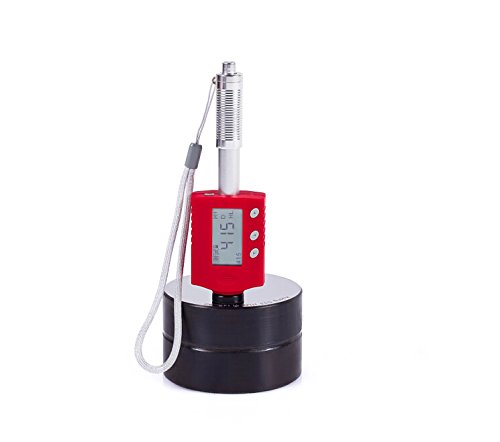

Leeb Hardness Tester Digital Pencil Hardness Tester Accurate and Stable Measurement 300 Groups Memories
- メーカー
- MXBAOHENG
- JAN
- 7608911574028
- メーカー品番
- HQ-1361
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
The product usually takes 7--13 business days to arrive to your hand after your order is confirmed
Measuring Materials:
Steel and cast steel, alloy tool steel, stainless steel, gray cast iron, nodular cast iron, cast aluminum alloy, copper zinc alloys (brass), an alloy of copper and tin, copper (bronze), forged steel
Technical Specification
Measuring Range: (170-960)HLD,(17.9-69.5)HRC,(19-683)HB,(80-1042)HV, (30.6-102.6)HS, (59.1-88)HRA, (13.5-101.7)HRB
Hardness Parameter: HL, HRC,HRB, HS,HB,HV,HRA(r m)
Accuracy: Within3%(HLD=800)
Display: LCD with back light
Memory: 300 groups
Battery type: 3.7V rechargeable lithium-battery
Connection: Bluetooth
Operating temperature: -20~+60 degree centigrade
Dimensions: 148?4?2mm
Impact Device Type: D
Weight: 11g
Application Fields:
Die cavity of molds
Suitable for high-altitude and field operations
Bearings and other parts
Failure analysis of pressure vessel, steam generator and other equipment
Heavy work piece
The installed machinery and permanently assembled parts.
Testing surface of a small hollow space
Material identification in the warehouse of metallic materials
Rapid testing in large range and multi-measuring areas for large-scale work piece
特記事項
- 1.Based on the principle of Leeb hardness testing theory , it can be used to detect a variety of metal materials. 2.Accurate and stable measurement value. 3.New design, compact, lightweight. Easy measuring in high-altitude operations
- 4.Direct display of hardness scales, freely convert between HRB, HRC, HV, HB, HS, HL. 5.Seven impact devices are available for special application. Automatically identify the type of impact devices. 6.LCD Screen, with high bright back light, easy operating in the dark.
- 7.Test at any angle, even upside down. 8.3.7V rechargeable lithium-battery. Continuous working period of 40 hours, standby time no less than 100 hours. 9.Low power consumption: Auto sleep, Auto power off to save energy. 10. Fully enclosed metal shell, suitable for use under poor working conditions
- 11.Large memory could store 300 groups information, including single measured value, mean value, impact direction, impact times, material and hardness scale etc.
- 12.Support user calibration function. 13.Software to connect to PC/ Blue tooth. Support micro-printer.
