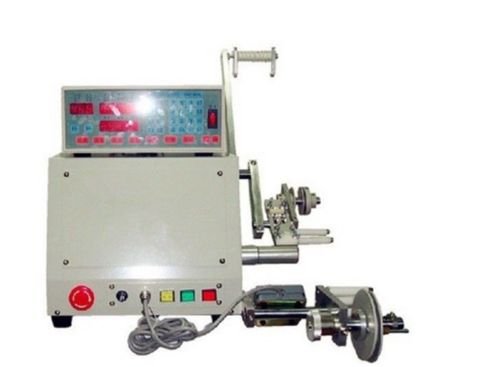

single phase AC 220V 50HZ or 110V three phase machine 400W(1/2hp) Computer CNC Automatic Coil Winder Winding Machine for 0.03-1.2mm wire

商品説明

It adopts the latest synchronous winding , it is with high precision and there will be no obstacles appear when in excessive speed winding displacement process.
The controller uses a single -chip microprocessor design , more powerful, much smaller, stronger anti-interference ability
Super elevated wisdom model , it has self-inspecting functions, including the errors of the equipment, excessive speed tracking and the calibration of the speed.
When operating, the speed of the cop motor can be changed at random, and the strand oscillator also can synchronize with it.
Has vernier caliper functions and can measure the winding width and starting point easily.
The time of speed growing can be changed at random depend on the type of the machines after start up of the cop motor ,
It can reduce the winding speed automatically to the most steady state. And obtain winding excessive speed detecting function ,
Foot-switch connection for better efficiency.
Can settle data: starting point, wire gauge, winding displacement width, circles, speed of starting the winding , stopping slow-speed, winding speed, slow lathe speed , winding displacement direction , winding direction , two-terminal stopping , automatic reset, automatic start (job-hopping winding)
Winding options and parameters can be set independently for each step.
Memory capacity accommodates 999 steps of parameters with off-power memory retention.

Note: can be dispensed from a motor drive by the buyer, < 1000 rpm


Count range: 0-5000 ring
