Pulse Argon Spot Welder 400W Welding Jewelry Gold Silver Platinum Palladium AC220V/110V

商品説明

The product usually takes 7--13 business days to arrive to your hand after your order is confirmed
Installation and testing
Specifications:
Power supply:AC220V, 50/60HZ or 110V 60HZ
Power:400W
Ampere for welding:0.5~50A,Continuous adjustable (Fluctuation)
Weight: approx 6kg
Size:300mm x 215mm x 140mm
1.Connecting electrode, black wire to black connection, red wire to red connection.
2. Connect argon gas trough argon gas pressure reducing valve, adjust gas value to minimum.
3. Welding needle can be sharpened by grinding on the grinding wheel, sharp point electricity principle.
4.Needle should be more 5mm out from welding connection, diameter of needle is 0.1mm.
Operation steps?
1.Connect to electricity and power on.
2.Adjust power by turn knob, rough set scale ranges from 1-1.5, accurate scale ranges from 7-8.
3.Clamp the workpiece, workpiece can not touch welding needle directly, the distance between them is better 0.5mm.
4.Step the pedal, then move your feet from it, welding finished.

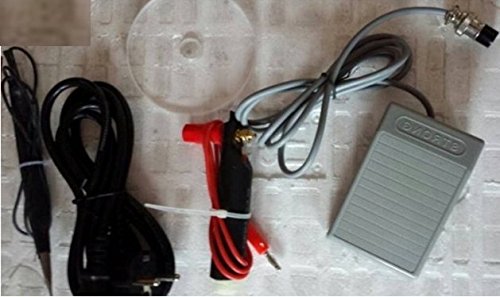

Package listing:
Welder,
Foot Pedal 1PC,
Cable 1PC,
Forceps Clamp 1PC,
Tungsten Needle 1PC
Attention
Do not step on the pedal with long time, just step it 1 time then move off immediately. Long time stepping on the pedal, machine will be short circuit, even to burn out inside electricity
This machine is precision equipment, please cherish it.
Spark light during the welding is harmful to eyes, please make sure good protection measures.
When you step pedal, do not touch needle or soldering metal.
Please do not disassemble the unit without professional guidance.
NOTE:
We will send you the item with the default voltage according to your country, if you have special requirement, please leave us a message, thank you!
If you have any questions , please feel free to contact us
