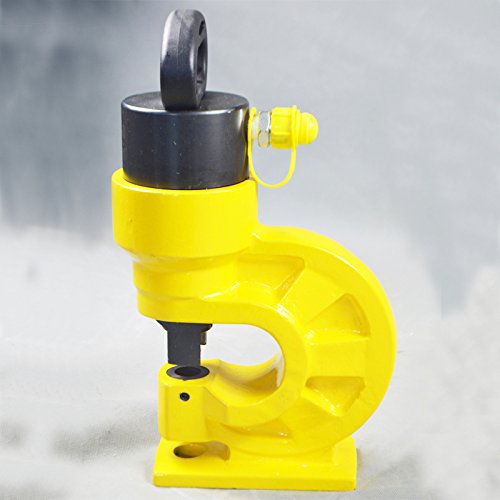

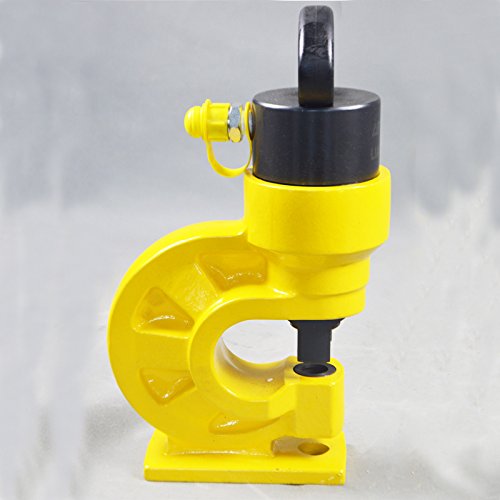

CH-60 Hydraulic Hole Punching Tool Puncher Iron Metal Copper Hydraulic Tools Punch Driver Hole Making Tool

商品説明

The product usually takes 7--13 business days to arrive to your hand after your order is confirmed

Specification:
Punching force: 31T?310KN?
Depth of throat: 3.74"(95mm)

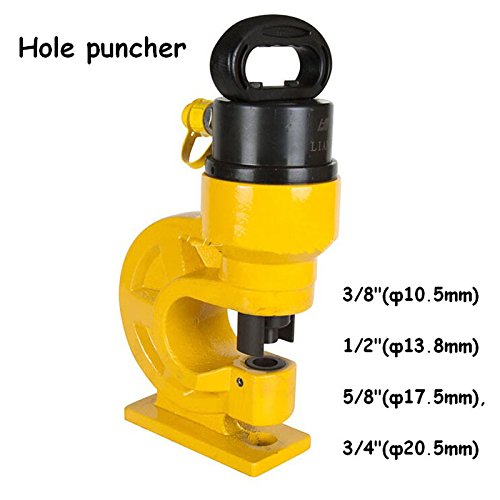

Aperture(4 pairs): 3/8"(?10.5mm) 1/2"(?13.8mm) 5/8"(?17.5mm), 3/4"(?20.5mm)
Max. Thickness of iron plate: 0.24"(6mm)
Max. Thickness of copper bar: 0.39"(10mm)
Weight: 39LB(18KG)

Feature:
This puncher is a dedicated busbar installation,punching machines and tools required to complete pump(manual pump,pedal pump,electric pump and so on)
1.It is designed for punching holes on Cu/Al busbars.
2.Fast speed punching,accurate position without deviation.
3.All kinds of punching dies could be ordered.
4.Hydraulic punching could avoid cutting scraps while punching holes.It is much safer and cleaner while operation.
5.Portable unit could be taken to site or fixed in factory for batch punching works.

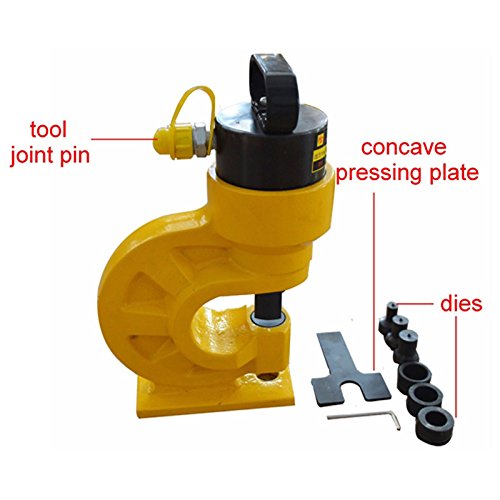

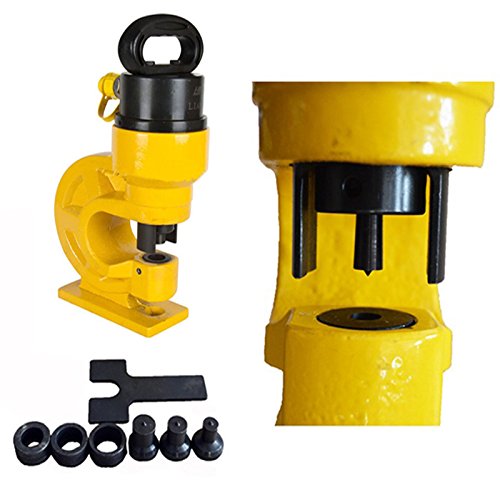

6.Standard assembling of four dies in diameter 10.5mm,13.8mm,17.5mm,20.5mm as free spare parts.
7.Spare parts goes with packing box,one fixing spanner one hexagon spanner too.
8. Hydraulic Hole Punching Tool CH-60 apply to L and H style flat copper and busbar.
9. End is designed with flat seat,smooth and not fall.
10. Single oil return, punch dies made of high carbon tungsten steel and not easy to wear off.
11. Connect with pump of model CP-700 ?CP-700-2A ?CP-800?DYB-63A ?ZCB-700A or electric pump.
