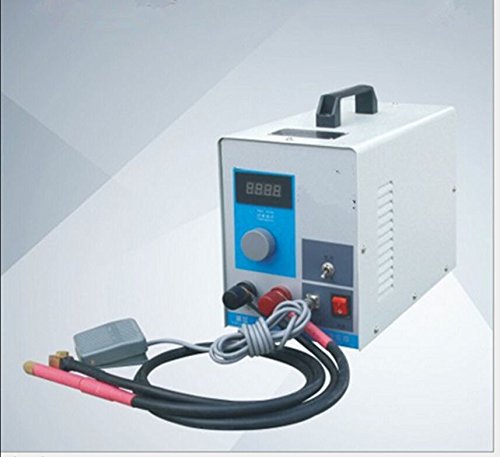

Brand New Steel Casting Mould Repair Welder Single Phase AC 220V 50Hz Repair machine
- メーカー
- MXBAOHENG
- JAN
- 6929451280486
- メーカー品番
- HQ-372
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
The product usually takes 7--13 business days to arrive to your hand after your order is confirmed
1 Years warranty
The main features
Output power: single-wire welding when welding ?1mm.
Simple: can be applied to general workers to operate.
Electrical connections and convenient: with magnetic connectors, any size workpiece can be easily connected to the power.
Easy to carry: small size of the machine.
Technical parameters
Can repair materials: In addition to the low resistivity material such as copper, aluminum, ferrous metal materials can be patched.
Repair project: a processing defect in the manufacturing process, such as excessive cutting and ultra-poor, size, angular damage, lack of TIG.
Tool & Die is generated in the process and local wear.
Cavity rust spots and other depressions.
Power supply: single phase AC 220 ? 10% 50Hz.
Power cut consumption: 50 ~ 500W.
Instantaneous maximum power: more than 12KW (HX-100B maximum fill material thickness> 0.25mm).
Operating modes: continuous.
Continuous pulse frequency: 3 ~ 50Hz, automatic frequency conversion.
Power mode: Precision and practices.
The host size: 400 ? 190 ? 260mm
Weight: about 20kg.
特記事項
- A high weld strength: the patch at the milling, filing and processing.
- Repair precision: flakes fill material to repair will not lose their original datum, less the excess solder, post-orthopedic easy. The smallest patch of 0.03mm, the largest patch is greater than 0.25mm.
- Wide range of applications: In addition to the very low resistivity of copper, aluminum and other materials, all kinds of metal material workpiece can be patched.
- Substrate damage: small hot spots, will not cause the substrate annealing deformation.
- Welding power stability: fluctuations within the range of supply voltage change of ? 10%, the machine can still guarantee the stability of the repair quality.
