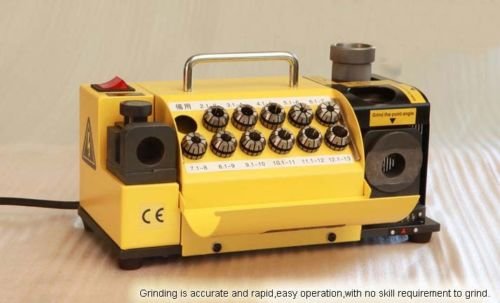

Drill Bits Sharpener Grinder Grinding Machine MR-13D 2 - 13 mm 100 - 135 Angle

商品説明

Features
1. Grinding is accurate and rapid, easy operation with no skill to grind.
2. Economical price that greatly reduces the cost and improves the use effect.

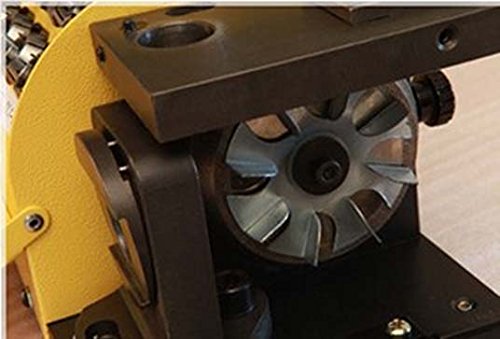

3. With diamond grinding wheel, it can be equipment directly with an accurate angle and long service life.
4. The electrically controlled and powerful DC motor: stable frequency, strong horsepower and long service life.
5. Bearing shaft and locking unit.
6. The machine is set up with the function of adjusting a point (central point) size, which can effectively coordinate with the material of drill hole and the rotation speed. It can control the quality precision and prolong the service life of the drill bit.

Specifications
Model MR-13D
Grinding Range ?2 - ?13( ?15)
Point Angle 100?(90? ~ 135?
Power AC 220 V, 50 Hz; AC 110 V, 60 Hz
Motor 180 W
Speed 5300 rpm
Dimension 32 x 18 x 19 cm
Weight 10 kg

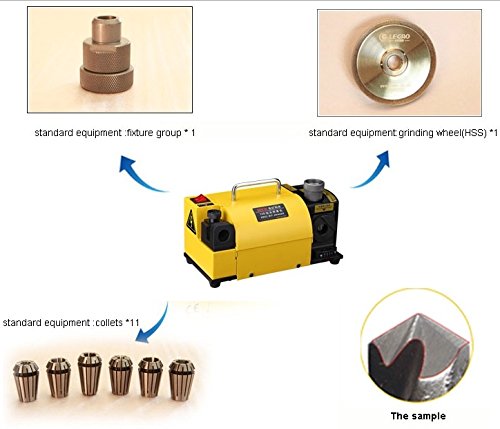

Standard Equipment Grinding Wheel :CBN (for HSS) ?1
Eleven Collets: ?3, ?4, ?5, ?6, ?7, ?8, ?9, ?10, ?11, ?12, ?13
Collet Chuck: (?2 - ?14) ?1
Option Equipment Grinding Wheel: SD(for Carbide)
Collets: ?2, ?2.5, ?3.5, ?4.5, ?5.5, ?14, ?15
Collet Chuck: ?15
