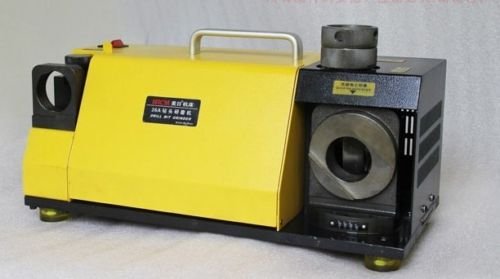

Drill Bits Sharpener Grinder Machine MR-26A 12.1(8) - 26(32) mm 85 - 140 Angle

商品説明

Drill Bits Sharpener Grinder Machine MR-26A 12.1(8) - 26(32) mm 85 - 140 Angle

Features
1. Grinding is accurate and rapid, easy operation, with no skill to grind.
2. Economical price that greatly reduces the cost and improves the use effect.
3. With diamond grinding wheel, it can be equipped directly with an accurate angle and long service life.
4. The electrically controlled and powerful DC motor: stable frequency, strong horsepower and long service life.
5. Bearing shaft and locking unit.
6. The machine is set up with the function of adjusting a point (central point) size, which can effectively coordinate with the material of drill hole and the rotation speed. It can control the quality precision and prolong the service life of the drill bit.

Specifications
Model MR-26A
Range ?12.1 (8) - ?26 (32) mm
Angle 85?- 140?
Power AC 220 V, 50 Hz; AC 110 V, 60 Hz
Speed 4000 RPM
Dimension 50 ?26 ?27 cm
Weight 27 kg

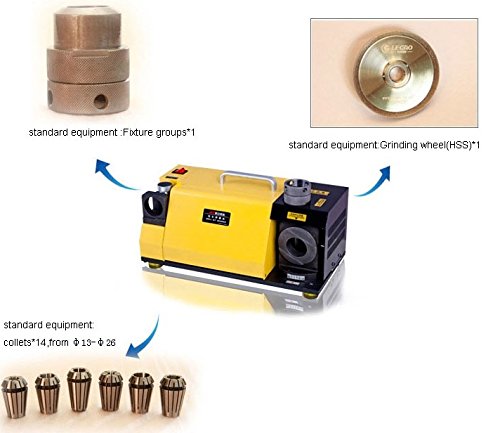

Standard Equipment Grinding wheel: CBN (for HSS) ?1
14 collets: ?13, ?14, ?15, ?16, ?17, ?18, ?19, ?20, ?21, ?22, ?23, ?24, ?25, ?26 Collet chuck: (?8 - ?30) ?1
Option Equipment Grinding wheel: SD (for Carbide)?
Collet: ?8, ?9, ?10, ?11, ?12, ?27, ?28, ?29, ?30,?31,?32
Collet chuck: (?31 ~ ?32)

The voltage could be 110 V/60 Hz or 220 (or 380) V/50 Hz (optional). By default, we will ship the product with voltage and frequency standard in the recipient's country. If you need something different, please send us a message.

We will arrange the shipment in 1-5 working days and it takes another 5-7 working days to reach you.
