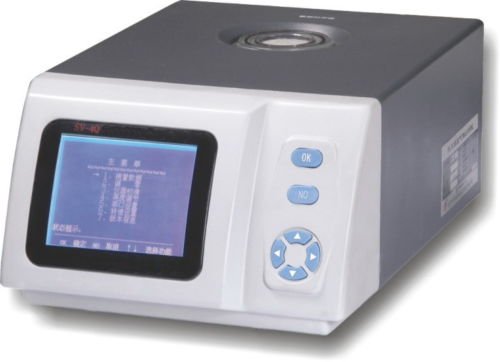

Automobile Exhaust Gas Analyzer Vehicle HC CO CO2 O2 Tester Meter SV-4Q

商品説明

Main Technical Parameter:
Environment conditions
Temperature: -5~40?C
humidity: ?95%
Atmosphere pressure: 670~106kps
power supply: AC220V ?0%; 50Hz ?Hz

Measurement range
HC: 0~10000 10-6(ppm) vol
CO: 0~10.0 10-2 (%)vol
CO2: 0~20.0 10-2(%)vol
O2:0~25.0 10-2 (%) vol
Speed : 0~10000rpm
Oil temperature: 0~120?C

Sampling mode: tail gas, directly sampling, length of sampling tube is 5m, and length of sampling head is 900mm.

oil temperature: inserting the head of thermo scope into the staff gauge of engine lubricant, the length of which is the same as that of oil staff gauge; blocking with rubber plug to speedent engine oil from ejecting.
length of lead: 5m.
Speed: Non-contact measurement method. Less than 20cm to the petrolic high-voltage flexible cord, measuring petrolic rotate speed.

Preheating time: 10 minutes

Resolution:
CO: 0.01% vol
HC: 1 ppm vol Hexylene Equivalent
CO2: 0.01% vol
O2: 0.01% vol
Speed: 0.1rmp
Allowed error:
CO: ?.06%vol(relative error:?%)
HC: ?2ppm vol (relative error:?%)
CO2: ?.5%(relative error:?%)
O2: ?.1% vol (relative error:?%)
Speed: ?0rpm (0~10000rpm)
?% measurements (>10000rpm)
