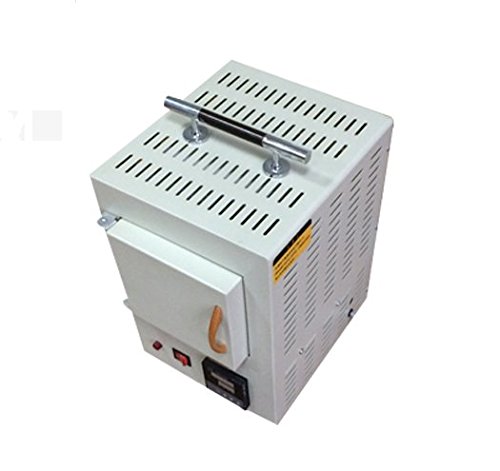

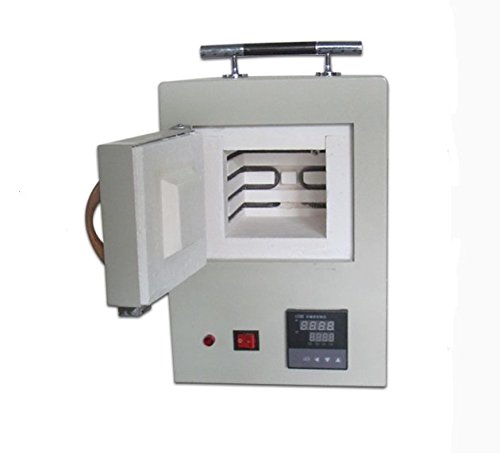

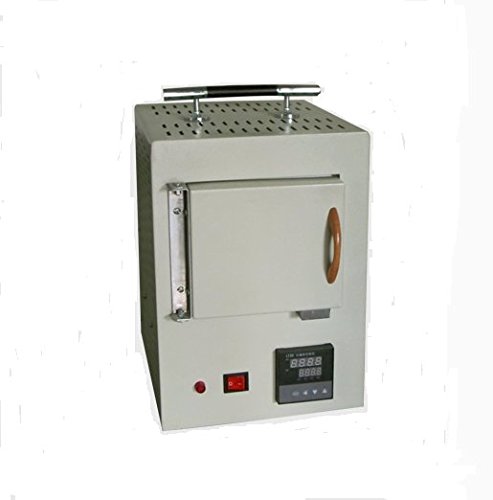

Ceramic Fibre Muffle Furnace Enclosed laboratory Small Electric Furnace The Integrated Program Control High Temperature Furnace 2KW 165?20?05 MM (220V)
- メーカー
- MXBAOHENG
- JAN
- 7608911572079
- メーカー品番
- MXBAOHENG
- この商品のレビュー
- Amazonでのレビュー
- シェア
商品説明
The product usually takes 7--13 business days to arrive to your hand after your order is confirmed
Parameters
Temperature range: 100 ~ 1000?
Fluctuation: ??
Display Accuracy: 1?
Dimensions of the furnace: 165?20?05 MM
Overall dimensions: 350?60?30 MM
Rate of temperature increase: ?100?/min(Any speed that can be arbitrarily adjusted below 100 degrees per minute)
Power: 2KW
Voltage: 220V/110V, 50hz
Furnace structure and materials
The furnace shell material:
The outer box shell is treated with high quality cold plate with the treatment of phosphate coating, and the color is the computer ash
Boiler furnace material: Using high radiation and low heat storage and super light fiber furnace plate, it is easy to heat energy and energy efficiency
Heat insulation method: air cooling
Temperature measuring port: The thermocouple enters from the above back of the furnace
Binding post: The heating furnace wire is located at the bottom of the furnace
Controller: Located at the bottom of the furnace, the built-in control system to compensate the conductor connected to the furnace
Heating element: High temperature resistance wire
Weight: 10kg
Package: wooden case
特記事項
- Use a badder-like inner container inside ceramic fiber, high temperature furnace heating, effecient energy-saving
- It is light, the weight is only one fifth of the normal high temperature furnace
- Control system adopts the automatic multichannel LTDE programmable instruments whose heating speed can be set.
